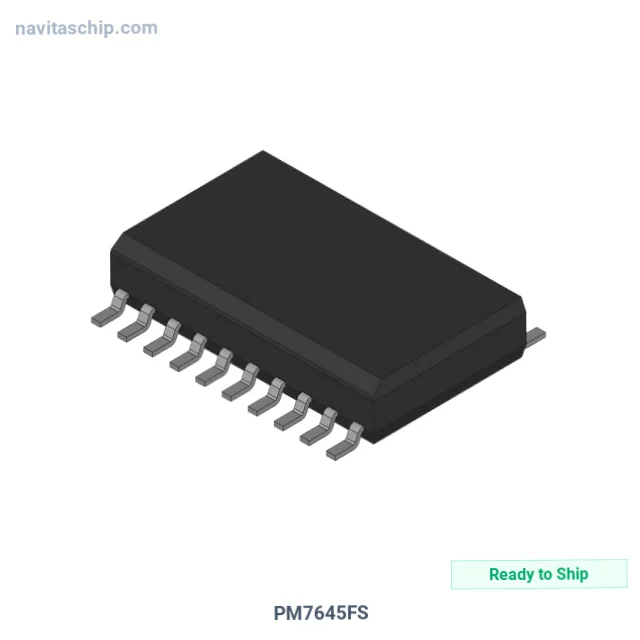

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PM7645FS |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12125098 |
| Description | IC DAC 12BIT A-OUT 20SOIC |
| Spec | 20-SOIC (0.295", 7.50mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | Multiplying DAC |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 20-SOIC |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. PM7645FS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PM7645FS is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 12bit A-Out in 20-Pin SOIC Package, housed in a compact 20-SOIC package.
In today's market, hard-to-find legacy converters with original date codes and traceability can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-SOIC (0.295", 7.50mm Width)
- Device Package: 20-SOIC
Applications
Widely adopted for:
- current-output DAC for industrial 4-20 mA loop and laser driver applications
- voltage-output DAC with integrated buffer for direct load driving
- parallel interface DAC for high-speed waveform generation
Why Choose NavitasChip for PM7645FS?
NavitasChip offers cost-saving procurement for the PM7645FS and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Bulk or Custom Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Trusted by procurement managers in Japan, Thailand, and across the globe.
PM7645FS - Check our competitive price now.
