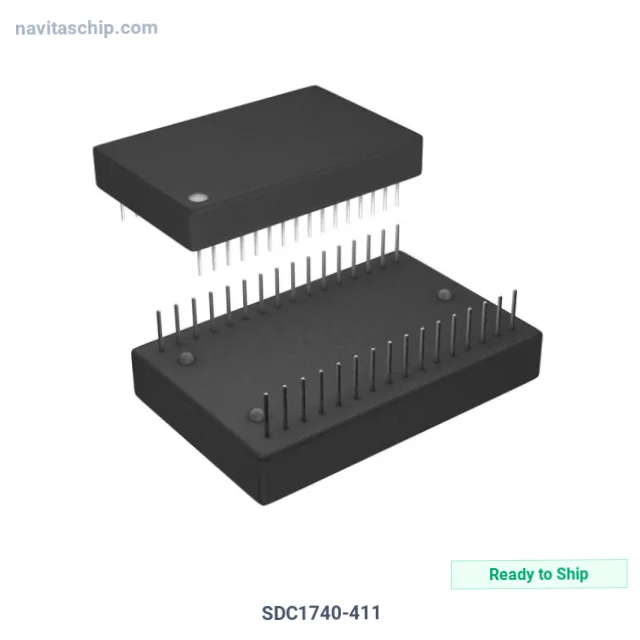

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SDC1740-411 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-625352 |
| Description | IC S/D CONVERTER 14BIT 32DIP |
| Spec | 32-DIP (0.900", 22.90mm) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Type | S/D Converter |
| Number of Channels | 3 |
| Resolution (Bits) | 14 b |
| Data Interface | Parallel |
| Voltage Supply Source | Analog and Digital, Dual ± |
| Voltage - Supply | ±15V, 5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 32-DIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. SDC1740-411 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SDC1740-411 is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit S/d Converter 14bit in 32-Pin DIP Package, housed in a compact 32-DIP package, with ±15V, 5V supply voltage.
Key Technical Specifications
- Supply Voltage: ±15V, 5V
- Channels: 3
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 32-DIP (0.900", 22.90mm)
- Device Package: 32-DIP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
