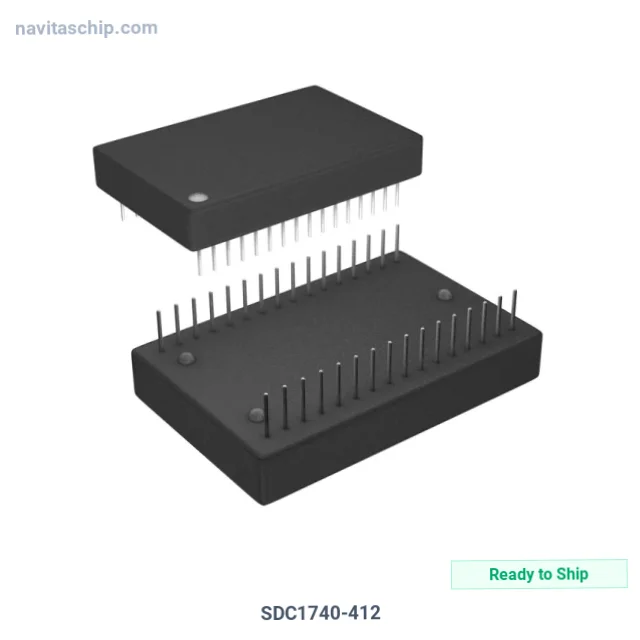

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SDC1740-412 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-625354 |
| Description | IC S/D CONVERTER 14BIT 32DIP |
| Spec | 32-DIP (0.900", 22.90mm) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Type | S/D Converter |
| Number of Channels | 3 |
| Resolution (Bits) | 14 b |
| Data Interface | Parallel |
| Voltage Supply Source | Analog and Digital, Dual ± |
| Voltage - Supply | ±15V, 5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 32-DIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. SDC1740-412 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SDC1740-412 is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit S/d Converter 14bit in 32-Pin DIP Package, housed in a compact 32-DIP package, with ±15V, 5V supply voltage.
In today's market, long factory lead times exceeding 40-50 weeks on 24-bit and 32-bit audio converters can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Supply Voltage: ±15V, 5V
- Channels: 3
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 32-DIP (0.900", 22.90mm)
- Device Package: 32-DIP
Applications
Ideal solution for:
- digital audio workstation and live sound reinforcement systems
- digital musical instruments and electronic music production equipment
- laboratory test and measurement signal acquisition equipment
Why Choose NavitasChip for SDC1740-412?
NavitasChip offers cost-effective alternative to authorized distributors for the SDC1740-412 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Bulk or Custom Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Ships from Hong Kong, Singapore, or Shenzhen based on destination requirements.
SDC1740-412 - Inquire for bulk discount.
