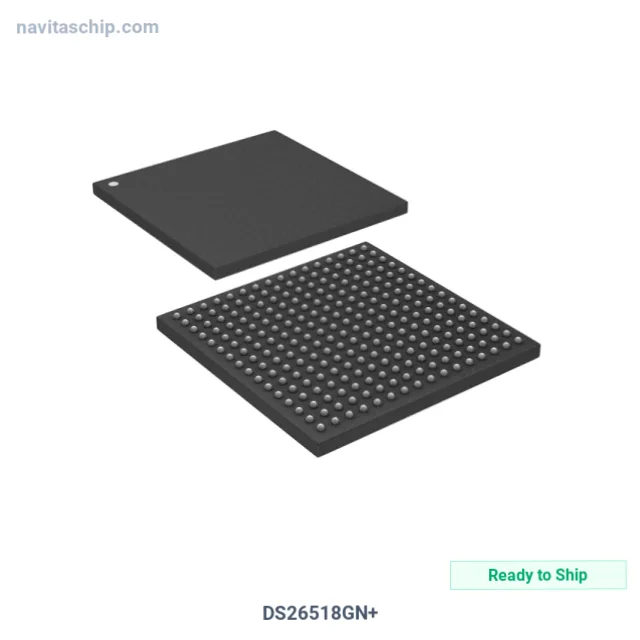

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DS26518GN+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-1768993 |
| Description | IC TRANSCEIVER FULL 8/8 256CSBGA |
| Spec | 256-BGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Tray |
| Product Status | Active |
| Type | Transceiver |
| Protocol | T1/E1/J1 |
| Number of Drivers/Receivers | 8/8 |
| Duplex | Full |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 256-CSBGA (17x17) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated DS26518GN+ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DS26518GN+ is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Transceiver Full 8/8 in 256-Pin BGA Package, housed in a compact 256-CSBGA (17x17) package, with 3.135V ~ 3.465V supply voltage. Originally developed by Maxim Integrated.
Key Technical Specifications
- Supply Voltage: 3.135V ~ 3.465V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 256-BGA
- Device Package: 256-CSBGA (17x17)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
