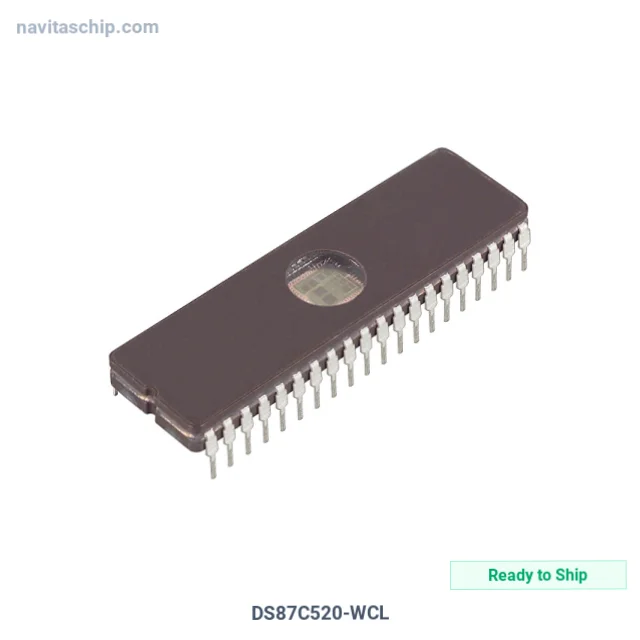

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DS87C520-WCL |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-420131 |
| Description | IC MCU 8B 16KB EPROM/UV 40CERDIP |
| Spec | 40-CDIP (0.600\ |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Tube |
| Product Status | Obsolete |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 33MHz |
| Connectivity | EBI/EMI, SIO, UART/USART |
| Peripherals | Power-Fail Reset, WDT |
| Number of I/O | 32 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | EPROM, UV |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Oscillator Type | External |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 40-CDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated DS87C520-WCL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DS87C520-WCL is a Microcontroller (MCU) manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Microcontroller 8b 16kb EPROM/uv 40cerdip, housed in a compact 40-CDIP package. Originally developed by Maxim Integrated.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Through Hole
- Package: 40-CDIP (0.600\
- Device Package: 40-CDIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
