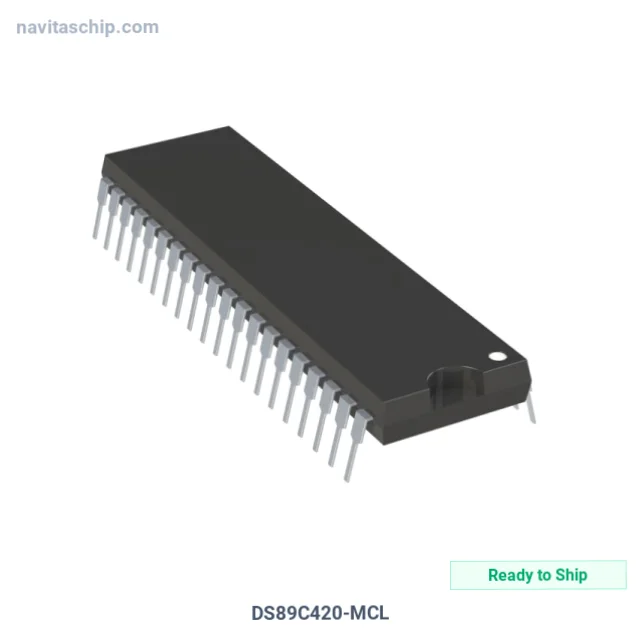

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DS89C420-MCL |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-680778 |
| Description | IC MCU 8BIT 16KB FLASH 40DIP |
| Spec | 40-DIP (0.600\ |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Tube |
| Product Status | Obsolete |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 33MHz |
| Connectivity | EBI/EMI, SIO, UART/USART |
| Peripherals | Power-Fail Reset, WDT |
| Number of I/O | 32 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Oscillator Type | External |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 40-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated DS89C420-MCL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DS89C420-MCL is a Microcontroller (MCU) manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Microcontroller 8bit 16kb Flash Memory in 40-Pin DIP Package, housed in a compact 40-PDIP package. Originally developed by Maxim Integrated, this component continues to be fully supported.
