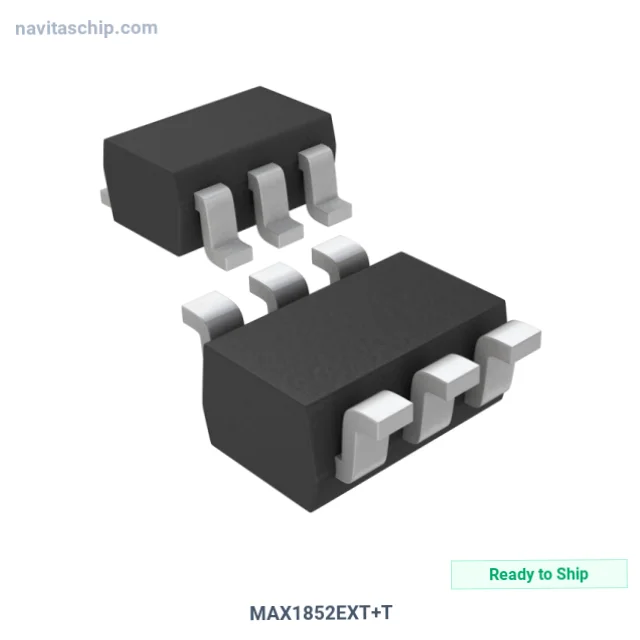

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MAX1852EXT+T |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-1520292 |
| Description | IC REG CHRG PUMP INV 30MA SC70-6 |
| Spec | 6-TSSOP, SC-88, SOT-363 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Ratiometric |
| Output Configuration | Positive or Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin |
| Current - Output | 30mA |
| Frequency - Switching | 50kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-6 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated MAX1852EXT+T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MAX1852EXT+T is a DC-DC Switching Voltage Regulator manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Regulator Charger Pump Inverting 30ma in 70-Pin Sc Package-6, housed in a compact SC-70-6 package. Originally developed by Maxim Integrated.
Key Technical Specifications
- Output Type: Fixed
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 6-TSSOP, SC-88, SOT-363
- Device Package: SC-70-6
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
