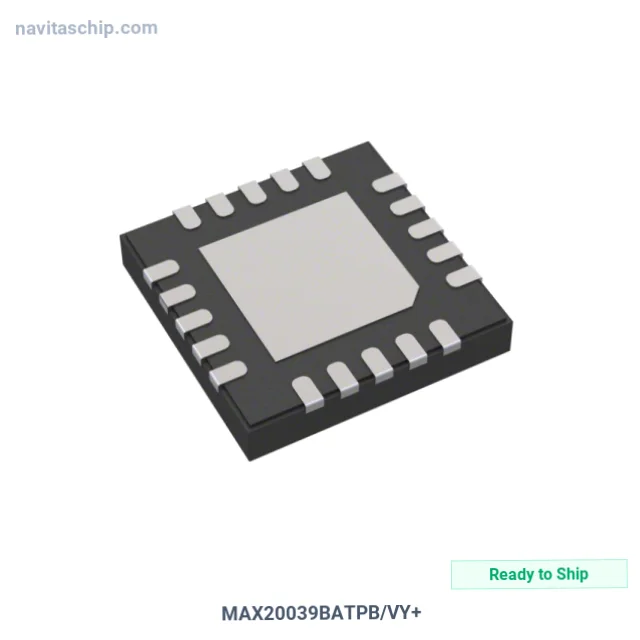

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MAX20039BATPB/VY+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-12460799 |
| Description | IC REG BUCK BOOST PROG/4V 20TQFN |
| Spec | 20-WFQFN Exposed Pad |
| Package | Strip |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Strip |
| Product Status | Active |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Output Type | Programmable (Fixed) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 4V (5V) |
| Voltage - Output (Max) | 15V |
| Current - Output | 600mA |
| Frequency - Switching | 200kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 20-TQFN-EP (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated MAX20039BATPB/VY+ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MAX20039BATPB/VY+ is a DC-DC Switching Voltage Regulator manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Regulator Buck Boost Programmable/4V Supply 20tqfn, housed in a compact 20-TQFN-EP (4x4) package. Originally developed by Maxim Integrated.
Key Technical Specifications
- Output Type: Programmable (Fixed)
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount, Wettable Flank
- Package: 20-WFQFN Exposed Pad
- Device Package: 20-TQFN-EP (4x4)
- RoHS Compliant
Packaging: factory Strip or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
