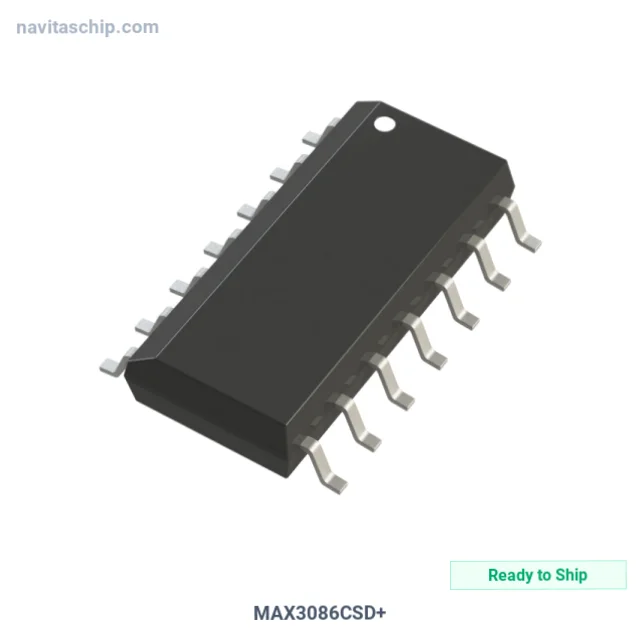

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MAX3086CSD+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-947869 |
| Description | IC TRANSCEIVER FULL 1/1 14SOIC |
| Spec | 14-SOIC (0.154", 3.90mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Tube |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Full |
| Receiver Hysteresis | 100 mV |
| Data Rate | 10Mbps |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated MAX3086CSD+ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MAX3086CSD+ is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Transceiver Full 1/1 in 14-Pin SOIC Package, housed in a compact 14-SOIC package, with 4.75V ~ 5.25V supply voltage. Originally developed by Maxim Integrated, this component continues to be fully supported.
In today's market, long factory lead times exceeding 40-50 weeks on differential driver receivers can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 14-SOIC (0.154", 3.90mm Width)
- Device Package: 14-SOIC
- RoHS Compliant
Applications
Widely adopted for:
- collaborative robotics and humanoid platform motor control communication
- IoT gateway and edge sensor network communication
- 5G CPE and small cell base station interfaces
- LVDS and high-speed serial drivers for backplane and inter-board links
Why Choose NavitasChip for MAX3086CSD+?
NavitasChip offers competitive market pricing for the MAX3086CSD+ and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for MAX3086CSD+, serving customers in UAE, Turkey, and worldwide.
MAX3086CSD+ - Contact our sales team.
