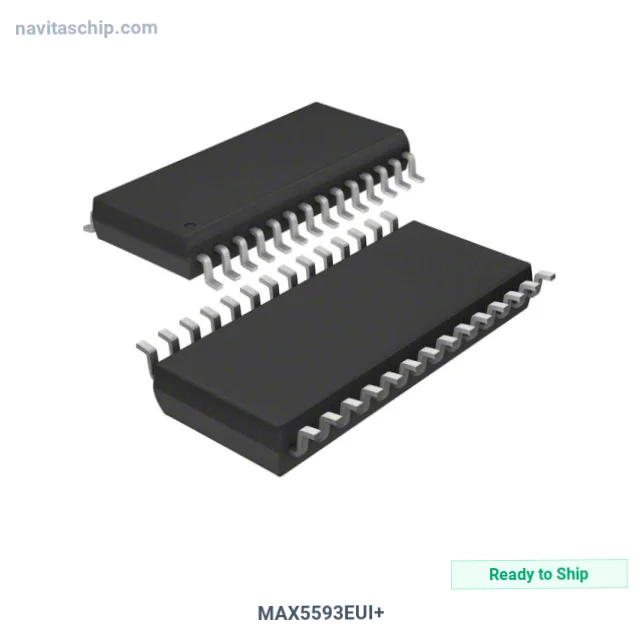

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MAX5593EUI+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-1779584 |
| Description | IC DAC 10BIT V-OUT 28TSSOP |
| Spec | 28-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 10 |
| Number of D/A Converters | 8 |
| Settling Time | 6µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 1.8V ~ 5.25V |
| INL/DNL (LSB) | ±0.5, ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 28-TSSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated MAX5593EUI+ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MAX5593EUI+ is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Digital-To-Analog Converter 10bit V-Out in 28-Pin TSSOP Package, housed in a compact 28-TSSOP package. Originally developed by Maxim Integrated.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-TSSOP (0.173", 4.40mm Width)
- Device Package: 28-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
