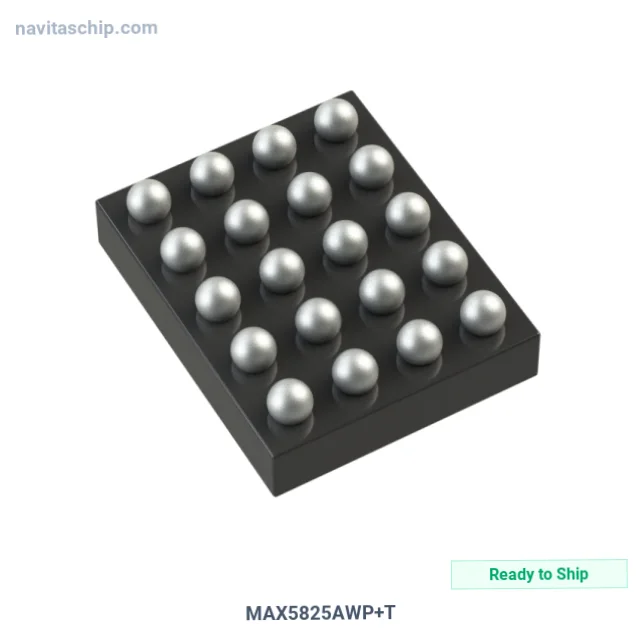

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MAX5825AWP+T |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-3976844 |
| Description | IC DAC 12BIT V-OUT 20WLP |
| Spec | 20-WFBGA, WLBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 8 |
| Settling Time | 4.5µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | I2C |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.2 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 20-WLP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated MAX5825AWP+T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MAX5825AWP+T is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Digital-To-Analog Converter 12bit V-Out 20wlp, housed in a compact 20-WLP package. Originally developed by Maxim Integrated.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 20-WFBGA, WLBGA
- Device Package: 20-WLP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
