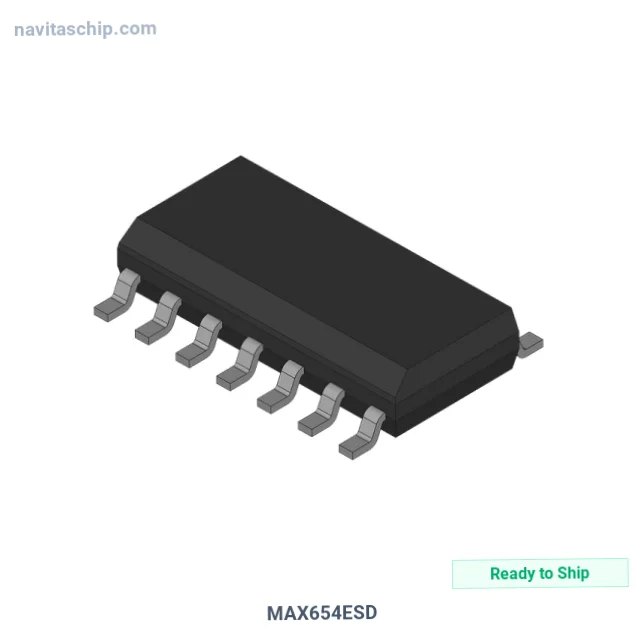

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MAX654ESD |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-12102927 |
| Description | IC REG BOOST 5V 40MA 14SOIC |
| Spec | 14-SOIC (0.154", 3.90mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Bulk |
| Product Status | Active |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.15V |
| Voltage - Input (Max) | 1.56V |
| Voltage - Output (Min/Fixed) | 5V |
| Current - Output | 40mA |
| Frequency - Switching | 18kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated MAX654ESD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MAX654ESD is a DC-DC Switching Voltage Regulator manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Regulator Boost 5V Supply 40ma in 14-Pin SOIC Package, housed in a compact 14-SOIC package. Originally developed by Maxim Integrated, this component continues to be fully supported.
Don't let legacy buck and boost converter sourcing for fielded industrial systems slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Output Type: Fixed
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 14-SOIC (0.154", 3.90mm Width)
- Device Package: 14-SOIC
Applications
Commonly utilized in:
- consumer electronics
- buck converter and step-down DC-DC conversion
- boost converter and step-up power conversion
Why Choose NavitasChip for MAX654ESD?
NavitasChip offers hard-to-find component sourcing for legacy systems for the MAX654ESD and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Bulk or Custom Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of MAX654ESD for the Japan and Singapore markets.
MAX654ESD - Contact our sales team.
