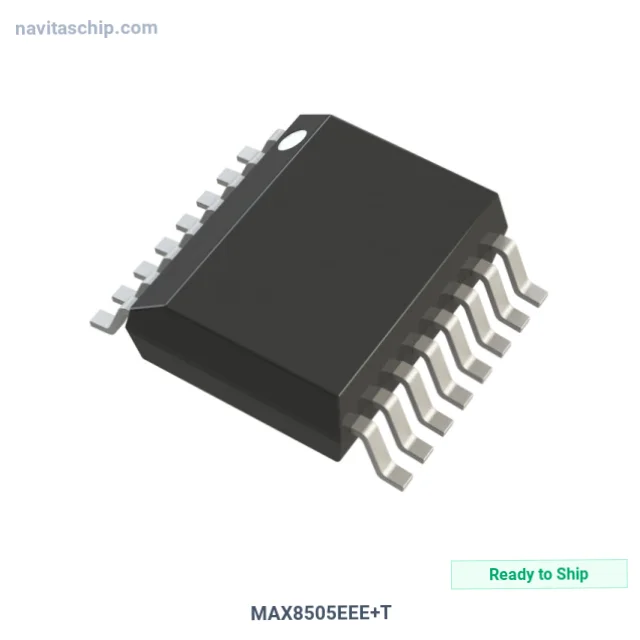

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MAX8505EEE+T |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-1519221 |
| Description | IC REG BUCK ADJ 3A 16QSOP |
| Spec | 16-SSOP (0.154", 3.90mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.6V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 4.68V |
| Current - Output | 3A |
| Frequency - Switching | 500kHz, 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-QSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated MAX8505EEE+T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MAX8505EEE+T is a DC-DC Switching Voltage Regulator manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Regulator Buck Adjustable 3a 16qsop, housed in a compact 16-QSOP package. Originally developed by Maxim Integrated, this component continues to be fully supported.
Don't let allocation constraints slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 16-SSOP (0.154", 3.90mm Width)
- Device Package: 16-QSOP
- RoHS Compliant
Applications
Designed for:
- buck converter and step-down DC-DC conversion
- synchronous rectification for high-efficiency power delivery
- ultra-low quiescent current for always-on battery-powered devices
- high switching frequency enabling compact inductor and capacitor sizing
