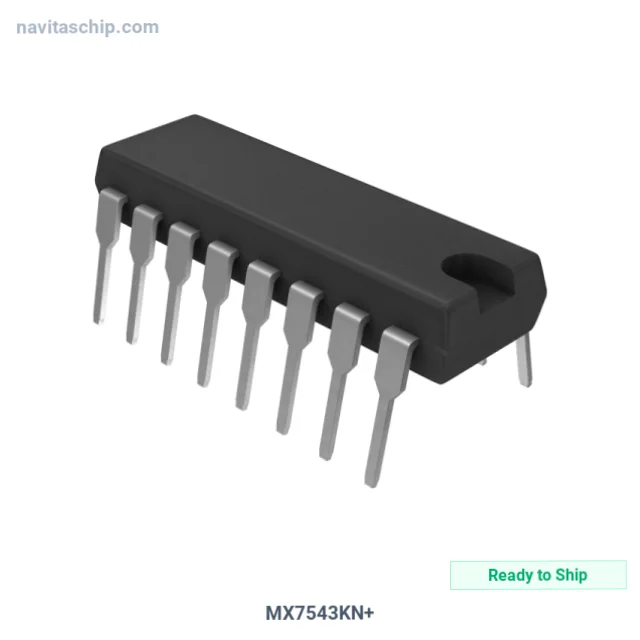

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MX7543KN+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-1302772 |
| Description | IC DAC 12BIT A-OUT 16DIP |
| Spec | 16-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 2µs |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Serial |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 16-PDIP |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated MX7543KN+ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MX7543KN+ is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). Integrated Circuit Digital-To-Analog Converter 12bit A-Out in 16-Pin DIP Package, housed in a compact 16-PDIP package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 16-DIP (0.300", 7.62mm)
- Device Package: 16-PDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
