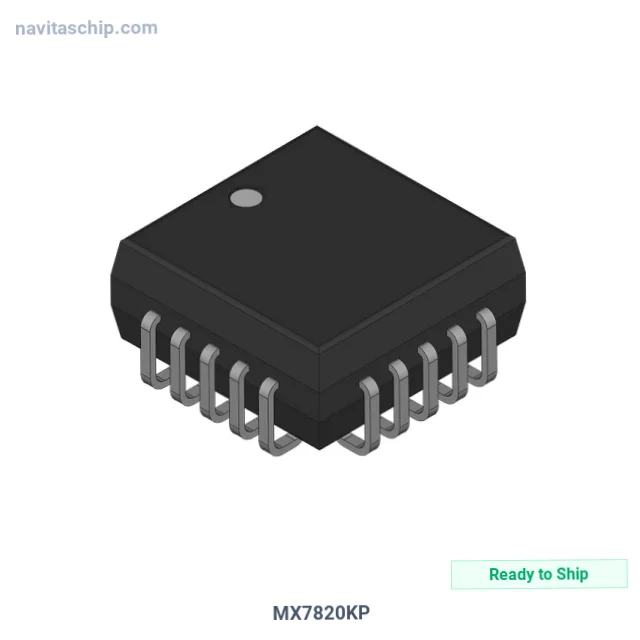

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MX7820KP |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| NavitasChip Part Number | NAVI-12136352 |
| Description | 8 BIT ADC WITH REFERENCE |
| Spec | 20-LCC (J-Lead) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 8 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Configuration | ADC |
| Ratio - S/H | 0:2 |
| Number of A/D Converters | 2 |
| Architecture | Flash |
| Reference Type | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 20-PLCC (8.97x8.97) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc./Maxim Integrated MX7820KP Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MX7820KP is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc./Maxim Integrated (ADI-Maxim). 8 Bit Analog-To-Digital Converter with Reference, housed in a compact 20-PLCC (8.97x8.97) package.
