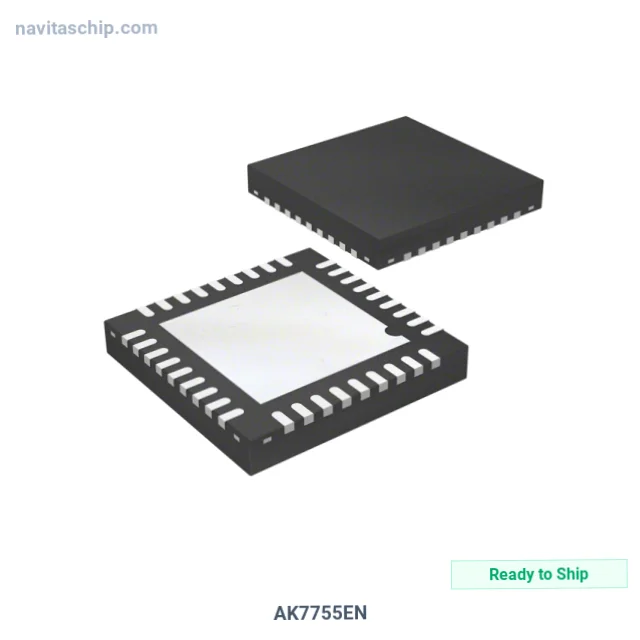

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AK7755EN |
| Manufacturer | Asahi Kasei Microdevices/AKM |
| NavitasChip Part Number | NAVI-5180453 |
| Description | IC DSP CODEC 24BIT 36QFN |
| Spec | 36-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Asahi Kasei Microdevices/AKM |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Floating Point |
| Interface | I2C, SPI |
| Clock Rate | 18.6MHz |
| On-Chip RAM | 54kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.20V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 36-QFN (6x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Asahi Kasei Microdevices/AKM AK7755EN Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AK7755EN is a Digital Signal Processor (DSP) manufactured by Asahi Kasei Microdevices/AKM (AKM). Integrated Circuit Digital Signal Processor Codec 24bit in 36-Pin QFN Package, housed in a compact 36-QFN (6x6) package.
Key Technical Specifications
- Interface: I2C, SPI
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 36-VFQFN Exposed Pad
- Device Package: 36-QFN (6x6)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
