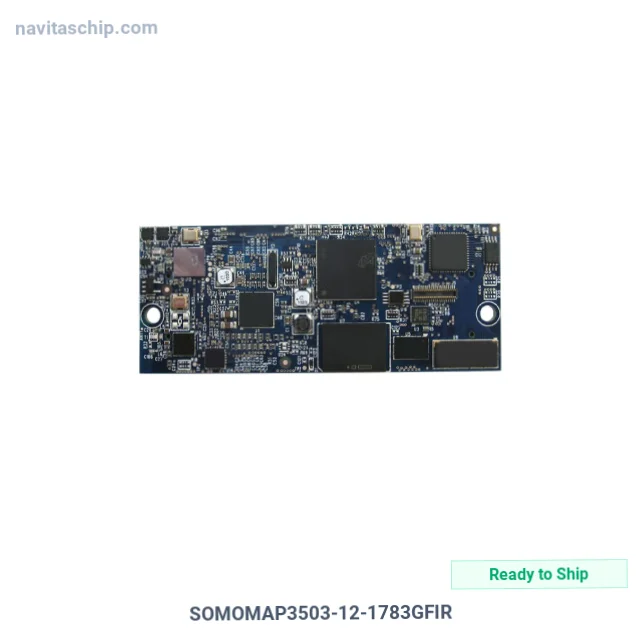

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SOMOMAP3503-12-1783GFIR |
| Manufacturer | Beacon EmbeddedWorks |
| NavitasChip Part Number | NAVI-8017914 |
| Description | SOM OMAP3530 SOM-LV TY |
| Spec | - |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers, Microprocessor, FPGA Modules |
| Manufacturer | Beacon EmbeddedWorks |
| Package | Bulk |
| Product Status | Active |
| Module/Board Type | MPU Core |
| Core Processor | ARM® Cortex®-A8, OMAP3503 |
| Speed | 600MHz |
| Flash Size | 512MB (NAND), 16MB (NOR) |
| RAM Size | 256MB |
| Connector Type | Board-to-Board (BTB) Socket - 240 |
| Size / Dimension | 1.230" L x 3.010" W (31.20mm x 76.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Beacon EmbeddedWorks SOMOMAP3503-12-1783GFIR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SOMOMAP3503-12-1783GFIR is a System-on-Module (SoM) manufactured by Beacon EmbeddedWorks. Som Omap3530 Som-Lv Ty.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Package: Bulk
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
