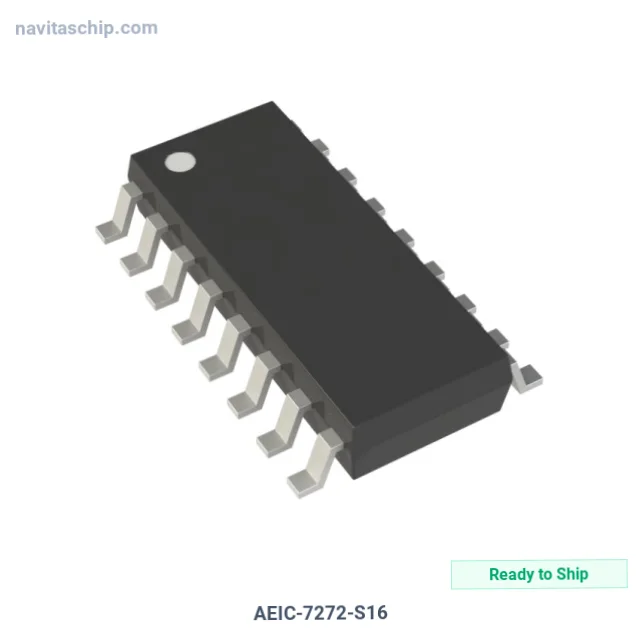

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AEIC-7272-S16 |
| Manufacturer | Broadcom Limited |
| NavitasChip Part Number | NAVI-2756781 |
| Description | IC TRANSCEIVER 4/0 16SOIC |
| Spec | 16-SOIC (0.154", 3.90mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Broadcom Limited |
| Package | Tube |
| Product Status | Active |
| Type | Driver |
| Number of Drivers/Receivers | 4/0 |
| Voltage - Supply | 3.5V ~ 30V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Broadcom Limited AEIC-7272-S16 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AEIC-7272-S16 is an Interface Driver Receiver Transceiver IC manufactured by Broadcom Limited (Broadcom). Integrated Circuit Transceiver 4/0 in 16-Pin SOIC Package, housed in a compact 16-SOIC package, with 3.5V ~ 30V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.5V ~ 30V
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 16-SOIC (0.154", 3.90mm Width)
- Device Package: 16-SOIC
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
