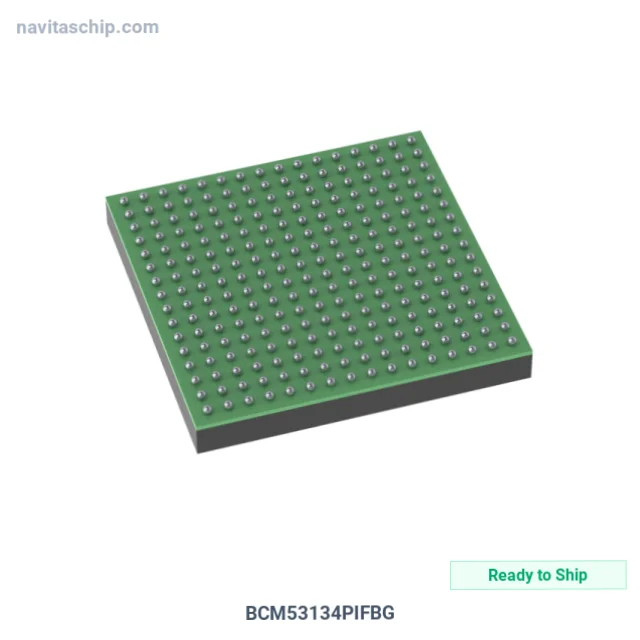

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | BCM53134PIFBG |
| Manufacturer | Broadcom Limited |
| NavitasChip Part Number | NAVI-6146404 |
| Description | LOW PORT GIGABIT SWITCH |
| Spec | 256-BGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Broadcom Limited |
| Package | Tray |
| Product Status | Active |
| Protocol | Ethernet |
| Function | Switch |
| Interface | RGMII, SGMII, SPI |
| Standards | IEEE 802.3, 10/100/1000 Base-T/TX PHY |
| Voltage - Supply | 0.95V ~ 1.1V, 3.14V ~ 3.47V |
| Current - Supply | 272.5mA (Typ) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 256-FBGA (11x11) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Broadcom Limited BCM53134PIFBG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The BCM53134PIFBG is an Interface Controller IC manufactured by Broadcom Limited (Broadcom). Low Port Gigabit Switch, housed in a compact 256-FBGA (11x11) package, with 0.95V ~ 1.1V, 3.14V ~ 3.47V supply voltage.
Key Technical Specifications
- Supply Voltage: 0.95V ~ 1.1V, 3.14V ~ 3.47V
- Interface: RGMII, SGMII, SPI
- Operating Temperature: -40°C ~ 85°C (TA)
- Package: 256-BGA
- Device Package: 256-FBGA (11x11)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
