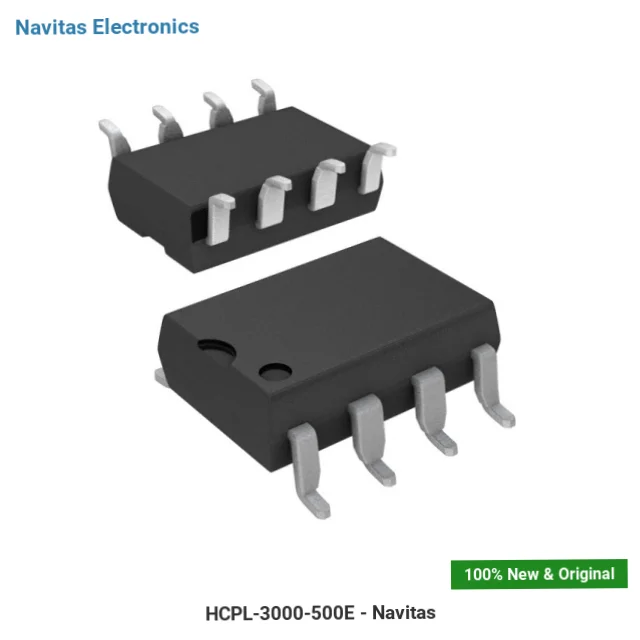

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HCPL-3000-500E |
| Manufacturer | Broadcom Limited |
| NavitasChip Part Number | NAVI-1234580 |
| Description | OPTOISO 5KV PWR TRAN DVR 8SMD GW |
| Spec | 8-SMD, Gull Wing |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Special Purpose Isolators |
| Manufacturer | Broadcom Limited |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Power Transistor Driver |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Input Type | DC |
| Current - Output / Channel | 500mA, 600mA |
| Propagation Delay tpLH / tpHL (Max) | 5µs, 5µs |
| Rise / Fall Time (Typ) | 200ns, 100ns |
| Voltage - Forward (Vf) (Typ) | 1.1 V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Supply | 5.4V ~ 13V |
| Operating Temperature | -20°C ~ 80°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SMD Gull Wing |
| Approval Agency | UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Broadcom Limited HCPL-3000-500E Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HCPL-3000-500E is an Isolator manufactured by Broadcom Limited (Broadcom). Optocoupler Isolator 5kV Power Transistor Driver 8-Surface Mount Gull Wing, housed in a compact 8-SMD Gull Wing package, with 5.4V ~ 13V supply voltage. Extended temperature range version (-40°C to +85°C).
Don't let digital isolator shortage slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Supply Voltage: 5.4V ~ 13V
- Channels: 1
- Operating Temperature: -20°C ~ 80°C
- Mounting: Surface Mount
- Package: 8-SMD, Gull Wing
- Device Package: 8-SMD Gull Wing
Applications
Critical part of:
- motor drives
- power supplies
- industrial control
Why Choose NavitasChip for HCPL-3000-500E?
NavitasChip offers cost-saving procurement for the HCPL-3000-500E and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Global supply network for HCPL-3000-500E with distribution hubs in Hong Kong, Singapore, and Shenzhen.
HCPL-3000-500E - Contact our sales team.
