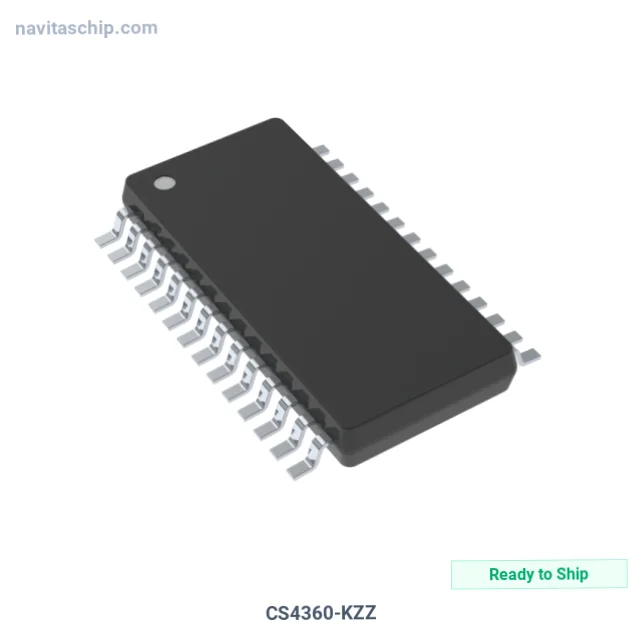

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CS4360-KZZ |
| Manufacturer | Cirrus Logic Inc. |
| NavitasChip Part Number | NAVI-2024880 |
| Description | IC DAC/AUDIO 24BIT 200K 28TSSOP |
| Spec | 28-TSSOP (0.173", 4.40mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Cirrus Logic Inc. |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Bulk |
| Product Status | Obsolete |
| Type | DAC, Audio |
| Number of Channels | 6 |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 200k |
| Data Interface | I2S |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.25V ~ 5.5V |
| Operating Temperature | -10°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Cirrus Logic Inc. CS4360-KZZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CS4360-KZZ is an Audio Codec and Special-Purpose Data Converter IC manufactured by Cirrus Logic Inc. (Cirrus). Integrated Circuit Digital-To-Analog Converter/audio 24bit 200k in 28-Pin TSSOP Package, housed in a compact 28-TSSOP package, with 2.25V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.25V ~ 5.5V
- Channels: 6
- Operating Temperature: -10°C ~ 70°C
- Mounting: Surface Mount
- Package: 28-TSSOP (0.173", 4.40mm Width)
- Device Package: 28-TSSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
