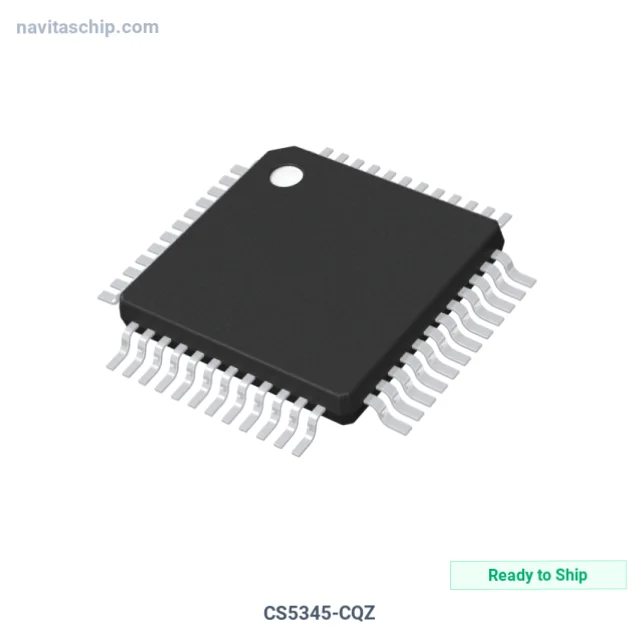

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CS5345-CQZ |
| Manufacturer | Cirrus Logic Inc. |
| NavitasChip Part Number | NAVI-923203 |
| Description | IC ADC/AUDIO 24BIT 192K 48LQFP |
| Spec | 48-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Cirrus Logic Inc. |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Obsolete |
| Type | ADC, Audio |
| Number of Channels | 6 |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 192k |
| Data Interface | Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 3.13V ~ 5.25V |
| Operating Temperature | -10°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LQFP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Cirrus Logic Inc. CS5345-CQZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CS5345-CQZ is an Audio Codec and Special-Purpose Data Converter IC manufactured by Cirrus Logic Inc. (Cirrus). Integrated Circuit Analog-To-Digital Converter/audio 24bit 192k in 48-Pin LQFP Package, housed in a compact 48-LQFP (7x7) package, with 3.13V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.13V ~ 5.25V
- Channels: 6
- Operating Temperature: -10°C ~ 70°C
- Mounting: Surface Mount
- Package: 48-LQFP
- Device Package: 48-LQFP (7x7)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
