| Manufacturer Product Number | CS5503-BS |
| Manufacturer | Cirrus Logic Inc. |
| NavitasChip Part Number | NAVI-12112950 |
| Description | CS5503 - 20-BIT A/D CONVERTER |
| Spec | 20-SOIC (0.295", 7.50mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Cirrus Logic Inc. |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 20 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Serial |
| Configuration | ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 20-SOIC |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Cirrus Logic Inc. CS5503-BS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

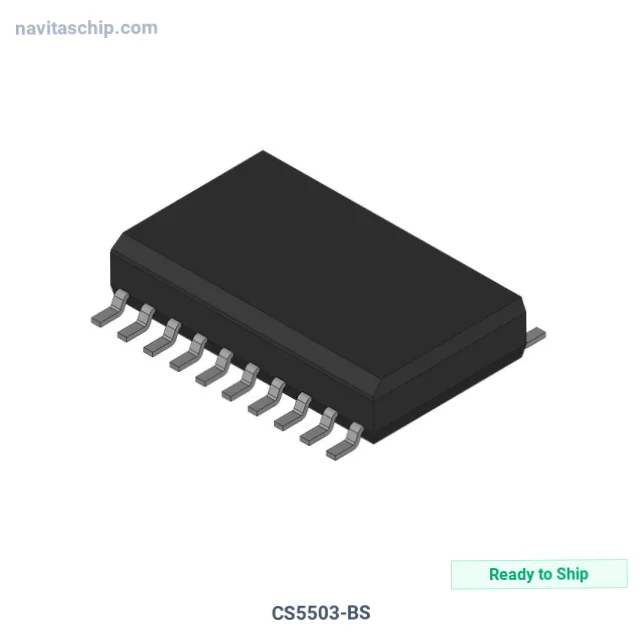

The CS5503-BS is an Analog-to-Digital Converter (ADC) manufactured by Cirrus Logic Inc. (Cirrus). Cs5503 - 20-Bit Analog-To-Digital Converter, housed in a compact 20-SOIC package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-SOIC (0.295", 7.50mm Width)
- Device Package: 20-SOIC
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
