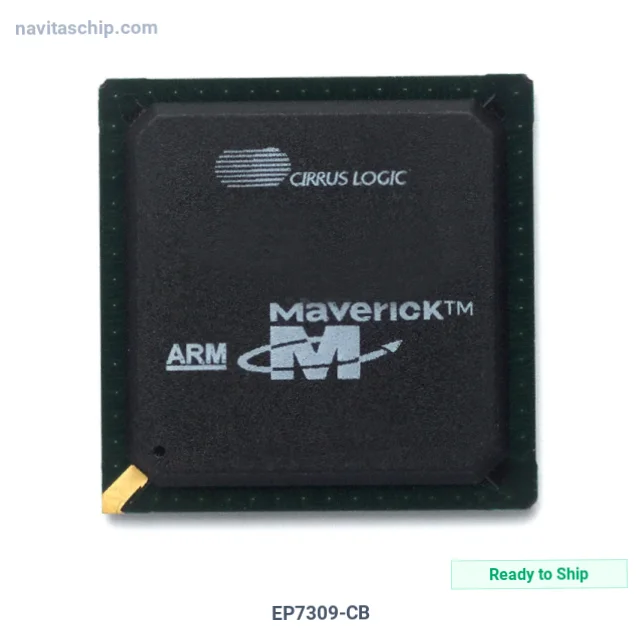

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | EP7309-CB |
| Manufacturer | Cirrus Logic Inc. |
| NavitasChip Part Number | NAVI-1245660 |
| Description | IC MPU EP7 74MHZ 256BGA |
| Spec | 256-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Cirrus Logic Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | ARM7TDMI |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 74MHz |
| Graphics Acceleration | No |
| Display & Interface Controllers | Keypad, LCD, Touchscreen |
| Voltage - I/O | 2.5V, 2.7V, 3.0V, 3.3V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Security Features | Hardware ID |
| Mounting Type | Surface Mount |
| Supplier Device Package | 256-PBGA (17x17) |
| Additional Interfaces | DAI, IrDA, SSI, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Cirrus Logic Inc. EP7309-CB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The EP7309-CB is an Embedded Processor manufactured by Cirrus Logic Inc. (Cirrus). Integrated Circuit Microprocessor Ep7 operating at 74MHz in 256-Pin BGA Package, housed in a compact 256-PBGA (17x17) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 256-LFBGA
- Device Package: 256-PBGA (17x17)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
