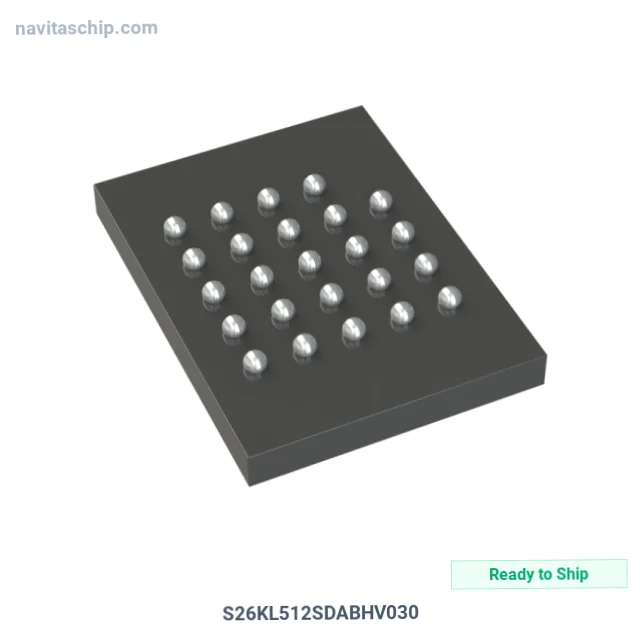

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S26KL512SDABHV030 |
| Manufacturer | Cypress Semiconductor Corp |
| NavitasChip Part Number | N96017035 |
| Description | IC FLASH 512MBIT PAR 24FBGA |
| Spec | 24-VBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Cypress Semiconductor Corp |
| Package | Tray |
| Product Status | Active |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 512Mbit |
| Memory Organization | 64M x 8 |
| Memory Interface | Parallel |
| Clock Frequency | 100 MHz |
| Access Time | 96 ns |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-FBGA (6x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Cypress Semiconductor Corp S26KL512SDABHV030 Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
Product Description
The S26KL512SDABHV030 is a Memory IC manufactured by Cypress Semiconductor Corp (Cypress). Integrated Circuit Flash Memory 512mbit Parallel in 24-Pin BGA Package, housed in a compact 24-FBGA (6x8) package, with 2.7V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.7V ~ 3.6V
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 24-VBGA
- Device Package: 24-FBGA (6x8)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
