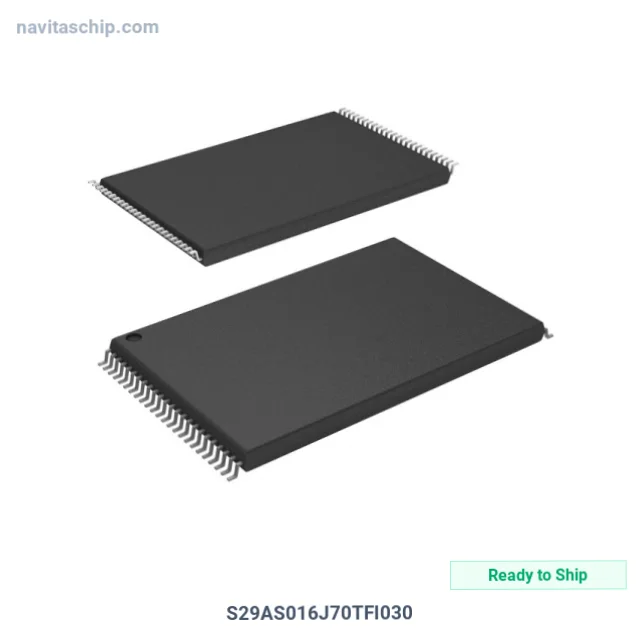

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S29AS016J70TFI030 |
| Manufacturer | Cypress Semiconductor Corp |
| NavitasChip Part Number | N96015325 |
| Description | IC FLASH 16MBIT PARALLEL 48TSOP |
| Spec | 48-TFSOP (0.724", 18.40mm Width) |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Cypress Semiconductor Corp |
| Package | Tray |
| Product Status | Obsolete |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 16Mbit |
| Memory Organization | 2M x 8, 1M x 16 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 70ns |
| Access Time | 70 ns |
| Voltage - Supply | 1.65V ~ 1.95V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-TSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Cypress Semiconductor Corp S29AS016J70TFI030 Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The S29AS016J70TFI030 is a Memory IC manufactured by Cypress Semiconductor Corp (Cypress). Integrated Circuit Flash Memory 16mbit Parallel in 48-Pin TSOP Package, housed in a compact 48-TSOP package, with 1.65V ~ 1.95V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.65V ~ 1.95V
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 48-TFSOP (0.724", 18.40mm Width)
- Device Package: 48-TSOP
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
