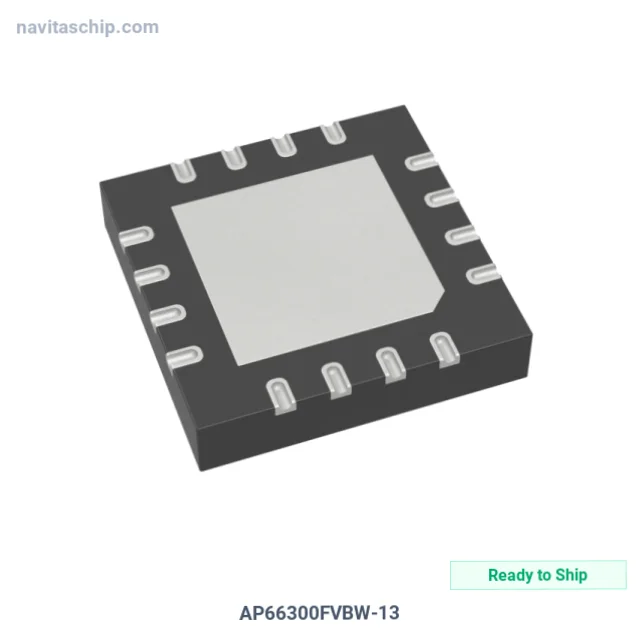

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AP66300FVBW-13 |
| Manufacturer | Diodes Incorporated |
| NavitasChip Part Number | NAVI-17126063 |
| Description | IC REG BUCK ADJ 3A U-QFN4040-16 |
| Spec | 16-UQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Diodes Incorporated |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.8V |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 50V |
| Current - Output | 3A |
| Frequency - Switching | 300kHz ~ 2.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | U-QFN4040-16/SWP (Type UXB) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Diodes Incorporated AP66300FVBW-13 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AP66300FVBW-13 is a DC-DC Switching Voltage Regulator manufactured by Diodes Incorporated (Diodes). Integrated Circuit Regulator Buck Adjustable 3a U-in 4040-Pin QFN Package-16, housed in a compact U-QFN4040-16/SWP (Type UXB) package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount, Wettable Flank
- Package: 16-UQFN Exposed Pad
- Device Package: U-QFN4040-16/SWP (Type UXB)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
