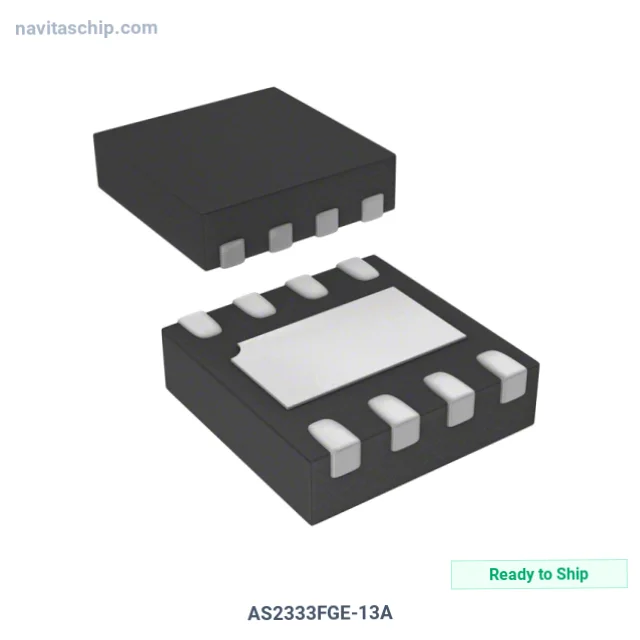

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AS2333FGE-13A |
| Manufacturer | Diodes Incorporated |
| NavitasChip Part Number | NAVI-22671438 |
| Description | OPAMP GENERAL PURPOSE U-DFN3030- |
| Spec | 8-UDFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Diodes Incorporated |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Chopper (Zero-Drift) |
| Number of Circuits | 2 |
| Output Type | Single Ended, Rail-to-Rail |
| Slew Rate | 0.12V/µs |
| Gain Bandwidth Product | 350 kHz |
| Current - Input Bias | 70 pA |
| Voltage - Input Offset | 8 µV |
| Current - Supply | 12µA (x2 Channels) |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | U-DFN3030-8 (Type E) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Diodes Incorporated AS2333FGE-13A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AS2333FGE-13A is an Operational Amplifier (Op Amp) manufactured by Diodes Incorporated (Diodes). Operational Amplifier General Purpose U-in 3030-Pin DFN Package-, housed in a compact U-DFN3030-8 (Type E) package.
Facing minimum order quantity requirements? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Single Ended, Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 8-UDFN Exposed Pad
- Device Package: U-DFN3030-8 (Type E)
- RoHS Compliant
Applications
Widely adopted for:
- precision op amp with low input offset voltage, low drift and high CMRR for instrumentation
- current sense amplifier for high-side and bidirectional battery and motor current monitoring
- high-voltage op amp rated 36 V to 60 V for industrial sensor front-ends and motor control
Why Choose NavitasChip for AS2333FGE-13A?
NavitasChip offers specialized sourcing for end-of-life and obsolete components for the AS2333FGE-13A and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for AS2333FGE-13A, serving customers in UAE, Saudi Arabia, and worldwide.
AS2333FGE-13A - Request a quote today.
