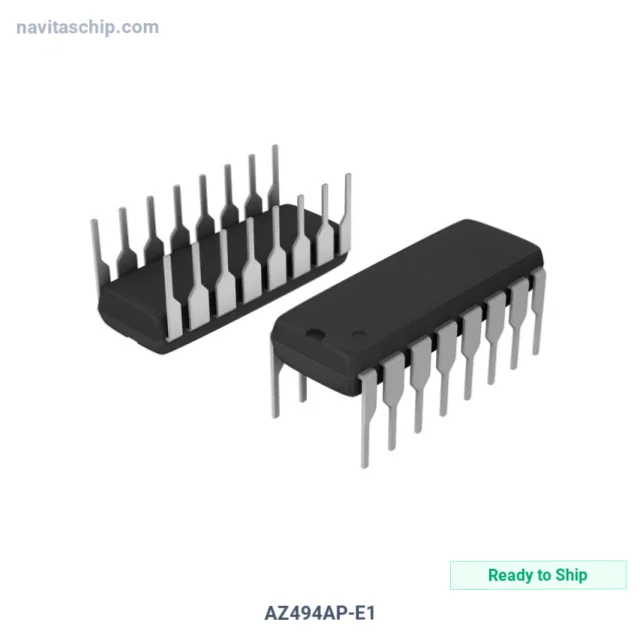

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AZ494AP-E1 |
| Manufacturer | Diodes Incorporated |
| NavitasChip Part Number | NAVI-4570718 |
| Description | IC REG BUCK 4.95V 200MA DL 16DIP |
| Spec | 16-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Diodes Incorporated |
| Package | Tube |
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 7V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 4.95V |
| Current - Output | 200mA |
| Frequency - Switching | 40kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-DIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Diodes Incorporated AZ494AP-E1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AZ494AP-E1 is a DC-DC Switching Voltage Regulator manufactured by Diodes Incorporated (Diodes). Integrated Circuit Regulator Buck 4.95V Supply 200ma Dual in 16-Pin DIP Package, housed in a compact 16-DIP package.
Key Technical Specifications
- Output Type: Fixed
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Through Hole
- Package: 16-DIP (0.300", 7.62mm)
- Device Package: 16-DIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
