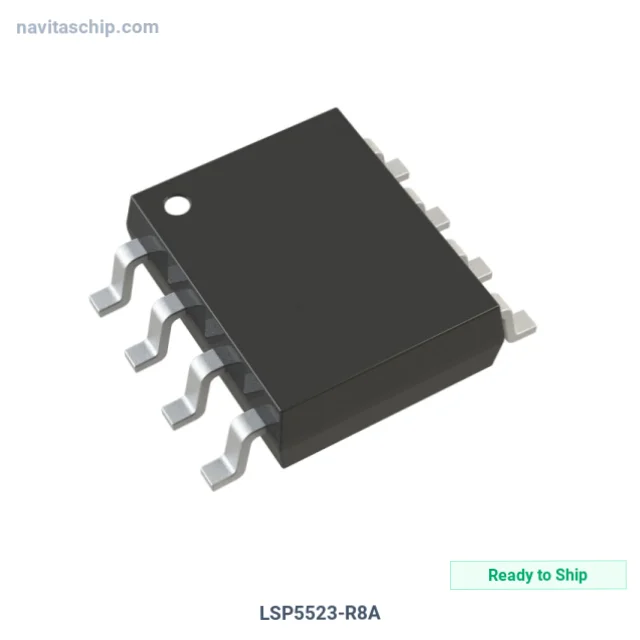

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LSP5523-R8A |
| Manufacturer | Diodes Incorporated |
| NavitasChip Part Number | NAVI-17874878 |
| Description | IC REG BUCK ADJ 3A 8SOP |
| Spec | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Diodes Incorporated |
| Package | Bulk |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 27V |
| Voltage - Output (Min/Fixed) | 0.925V |
| Voltage - Output (Max) | 21.6V |
| Current - Output | 3A |
| Frequency - Switching | 340kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOP-EP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Diodes Incorporated LSP5523-R8A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LSP5523-R8A is a DC-DC Switching Voltage Regulator manufactured by Diodes Incorporated (Diodes). Integrated Circuit Regulator Buck Adjustable 3a 8-SOP, housed in a compact 8-SOP-EP package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -20°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Device Package: 8-SOP-EP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
