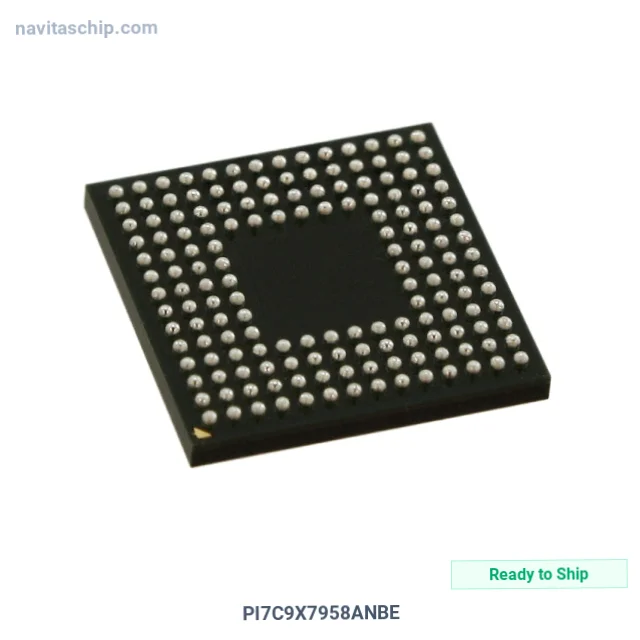

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PI7C9X7958ANBE |
| Manufacturer | Diodes Incorporated |
| NavitasChip Part Number | NAVI-2295417 |
| Description | IC PCIE-TO-UART BRIDGE 160LFBGA |
| Spec | 160-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Diodes Incorporated |
| Package | Tray |
| Product Status | Obsolete |
| Protocol | PCI |
| Function | Bridge, PCI to UART |
| Interface | UART |
| Voltage - Supply | 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 160-LFBGA (12x12) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Diodes Incorporated PI7C9X7958ANBE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PI7C9X7958ANBE is an Interface Controller IC manufactured by Diodes Incorporated (Diodes). Integrated Circuit PCIe-To-UART Bridge in 160-Pin BGA Package, housed in a compact 160-LFBGA (12x12) package, with 1.8V, 3.3V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.8V, 3.3V
- Interface: UART
- Operating Temperature: -40°C ~ 85°C
- Package: 160-LFBGA
- Device Package: 160-LFBGA (12x12)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
