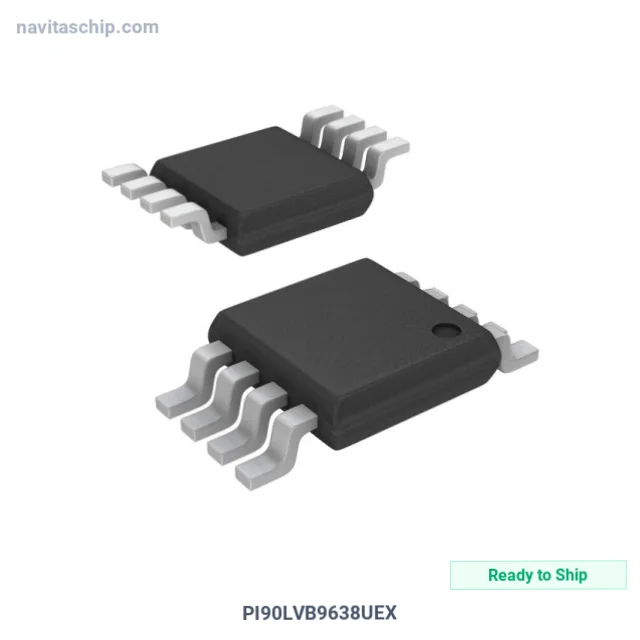

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PI90LVB9638UEX |
| Manufacturer | Diodes Incorporated |
| NavitasChip Part Number | NAVI-1142837 |
| Description | IC TRANSCEIVER 2/0 8MSOP |
| Spec | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Diodes Incorporated |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Driver |
| Protocol | LVDS |
| Number of Drivers/Receivers | 2/0 |
| Voltage - Supply | 3.3V |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PI90LVB9638UEX is an Interface Driver Receiver Transceiver IC manufactured by Diodes Incorporated (Diodes). Integrated Circuit Transceiver 2/0 in 8-Pin MSOP Package, housed in a compact 8-MSOP package, with 3.3V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.3V
- Mounting: Surface Mount
- Package: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Device Package: 8-MSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
