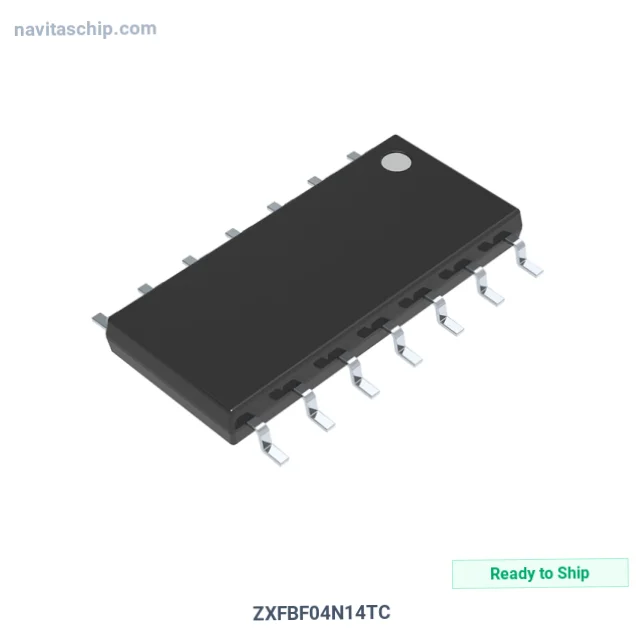

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ZXFBF04N14TC |
| Manufacturer | Diodes Incorporated |
| NavitasChip Part Number | NAVI-512646 |
| Description | IC BUFFER 4 CIRCUIT 14SO |
| Spec | 14-SOIC (0.154", 3.90mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Diodes Incorporated |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Amplifier Type | Buffer |
| Number of Circuits | 4 |
| Slew Rate | 40V/µs |
| Gain Bandwidth Product | 100 MHz |
| -3db Bandwidth | 100 MHz |
| Current - Input Bias | 500 nA |
| Voltage - Input Offset | 12 mV |
| Current - Supply | 7.6mA |
| Current - Output / Channel | 9 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 10 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Diodes Incorporated ZXFBF04N14TC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ZXFBF04N14TC is an Operational Amplifier (Op Amp) manufactured by Diodes Incorporated (Diodes). Integrated Circuit Buffer 4 Circuit 14so, housed in a compact 14-SO package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 14-SOIC (0.154", 3.90mm Width)
- Device Package: 14-SO
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
