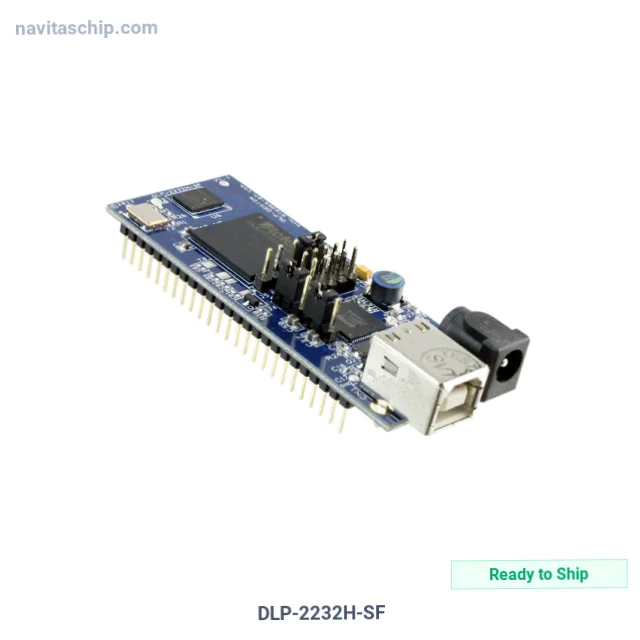

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DLP-2232H-SF |
| Manufacturer | DLP Design Inc. |
| NavitasChip Part Number | NAVI-3929615 |
| Description | IC MOD SMARTFUSION 100MHZ 64KB |
| Spec | - |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers, Microprocessor, FPGA Modules |
| Manufacturer | DLP Design Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Module/Board Type | MCU/FPGA, USB Core |
| Core Processor | SmartFusion, A2F200M3F |
| Co-Processor | FT2232H |
| Speed | 100MHz |
| Flash Size | 256KB |
| RAM Size | 64KB (Internal), 4MB (External) |
| Connector Type | USB - B, Pin Header |
| Size / Dimension | 3.000" L x 1.200" W (76.20mm x 30.50mm) |
| Operating Temperature | 0°C ~ 70°C |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | DLP Design Inc. DLP-2232H-SF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DLP-2232H-SF is a System-on-Module (SoM) manufactured by DLP Design Inc.. Integrated Circuit Mod Smartfusion operating at 100MHz 64kb.
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
