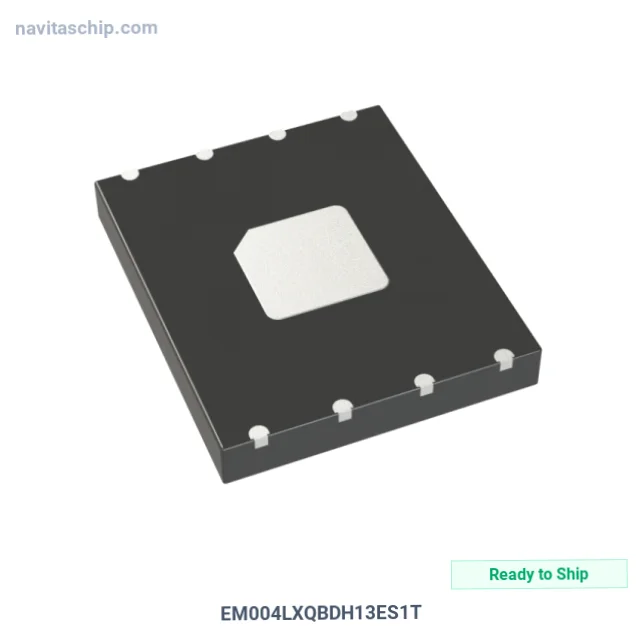

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | EM004LXQBDH13ES1T |
| Manufacturer | Everspin Technologies Inc. |
| NavitasChip Part Number | NAVI-23623503 |
| Description | IC RAM 4MB XSPI/QUAD 8DFN |
| Spec | 8-VDFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory |
| Manufacturer | Everspin Technologies Inc. |
| Package | Tray |
| Product Status | Active |
| Memory Type | Non-Volatile |
| Memory Format | RAM |
| Technology | MRAM (Magnetoresistive RAM) |
| Memory Size | 4Mbit |
| Memory Organization | 512K x 8 |
| Memory Interface | SPI - Quad I/O |
| Clock Frequency | 133 MHz |
| Voltage - Supply | 1.65V ~ 2V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (5x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Everspin Technologies Inc. EM004LXQBDH13ES1T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The EM004LXQBDH13ES1T is a Memory IC manufactured by Everspin Technologies Inc. (Everspin). Integrated Circuit Ram 4mb Xspi/quad in 8-Pin DFN Package, housed in a compact 8-DFN (5x6) package, with 1.65V ~ 2V supply voltage.
Facing production line down? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Supply Voltage: 1.65V ~ 2V
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 8-VDFN Exposed Pad
- Device Package: 8-DFN (5x6)
- RoHS Compliant
Applications
Designed for:
- data storage
- computing platforms
- networking equipment
Why Choose NavitasChip for EM004LXQBDH13ES1T?
NavitasChip offers cost-effective alternative to authorized distributors for the EM004LXQBDH13ES1T and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
EM004LXQBDH13ES1T available for international procurement with multiple shipping origin options.
EM004LXQBDH13ES1T - Check our competitive price now.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
