| Manufacturer Product Number | FAN53555UC09X |
| Manufacturer | Fairchild Semiconductor |
| NavitasChip Part Number | NAVI-12597373 |
| Description | IC REG BUCK PROG 5A 20WLCSP |
| Spec | 20-UFBGA, WLCSP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Fairchild Semiconductor |
| Package | Bulk |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Programmable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.603V |
| Voltage - Output (Max) | 1.41V |
| Current - Output | 5A |
| Frequency - Switching | 2.4MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-WLCSP (1.96x1.56) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Fairchild Semiconductor FAN53555UC09X Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

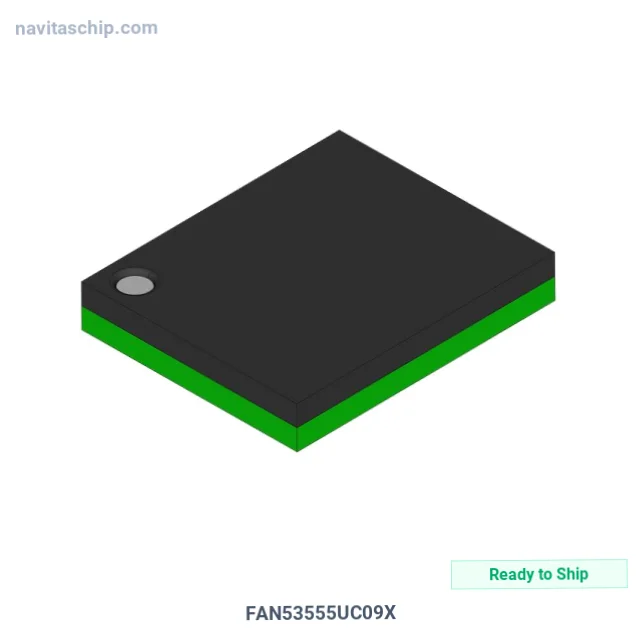

The FAN53555UC09X is a DC-DC Switching Voltage Regulator manufactured by Fairchild Semiconductor (Fairchild). Integrated Circuit Regulator Buck Programmable 5a 20wlcsp, housed in a compact 20-WLCSP (1.96x1.56) package.
Key Technical Specifications
- Output Type: Programmable
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 20-UFBGA, WLCSP
- Device Package: 20-WLCSP (1.96x1.56)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
