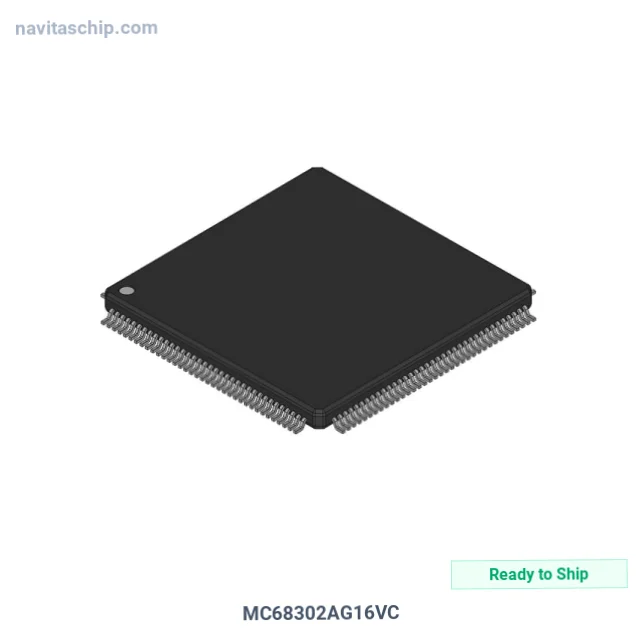

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC68302AG16VC |
| Manufacturer | Freescale Semiconductor |
| NavitasChip Part Number | NAVI-12592243 |
| Description | IC MPU M683XX 16MHZ 144LQFP |
| Spec | 144-LQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Freescale Semiconductor |
| Package | Bulk |
| Product Status | Active |
| Core Processor | M68000 |
| Number of Cores/Bus Width | 1 Core, 8/16-Bit |
| Speed | 16MHz |
| Co-Processors/DSP | Communications; RISC CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Voltage - I/O | 3.3V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Additional Interfaces | GCI, IDL, ISDN, NMSI, PCM, SCPI |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Freescale Semiconductor MC68302AG16VC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC68302AG16VC is an Embedded Processor manufactured by Freescale Semiconductor (Freescale). Integrated Circuit Microprocessor M683xx operating at 16MHz in 144-Pin LQFP Package, housed in a compact 144-LQFP (20x20) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 144-LQFP
- Device Package: 144-LQFP (20x20)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
