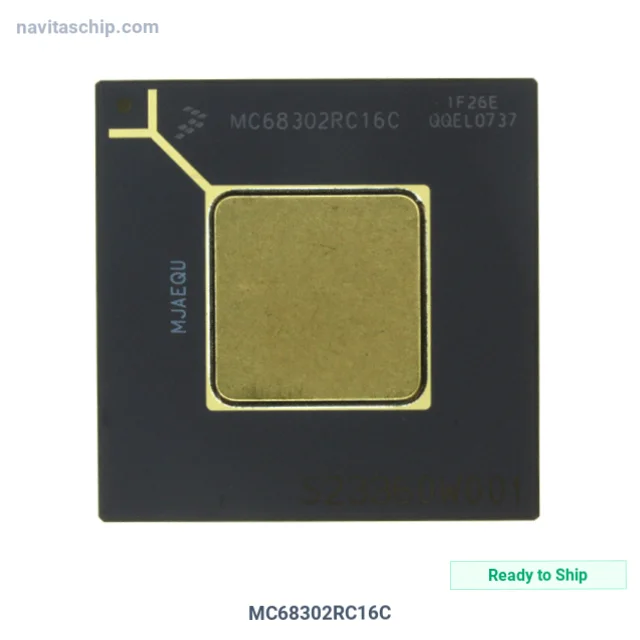

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC68302RC16C |
| Manufacturer | Freescale Semiconductor |
| NavitasChip Part Number | NAVI-11525031 |
| Description | IC MPU M683XX 16MHZ 132PGA |
| Spec | 132-BPGA Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Freescale Semiconductor |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | M68000 |
| Number of Cores/Bus Width | 1 Core, 8/16-Bit |
| Speed | 16MHz |
| Co-Processors/DSP | Communications; RISC CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Voltage - I/O | 5.0V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 132-PGA (34.5x34.5) |
| Additional Interfaces | GCI, IDL, ISDN, NMSI, PCM, SCPI |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Freescale Semiconductor MC68302RC16C Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC68302RC16C is an Embedded Processor manufactured by Freescale Semiconductor (Freescale). Integrated Circuit Microprocessor M683xx operating at 16MHz 132pga, housed in a compact 132-PGA (34.5x34.5) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Through Hole
- Package: 132-BPGA Exposed Pad
- Device Package: 132-PGA (34.5x34.5)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
