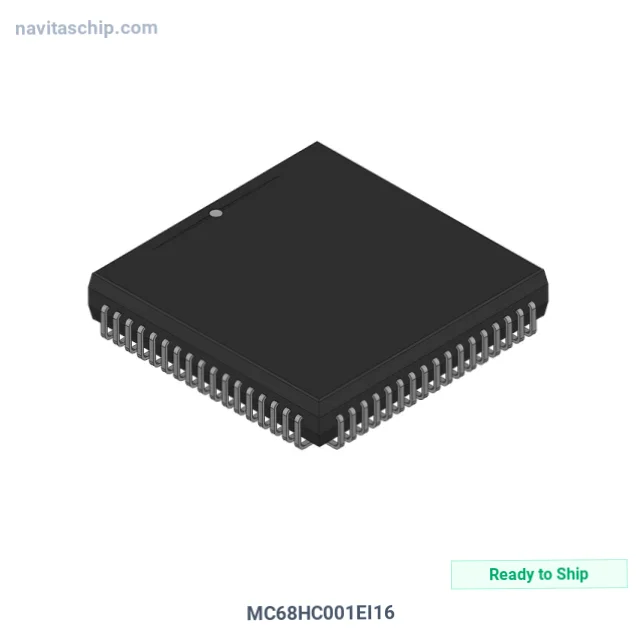

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC68HC001EI16 |
| Manufacturer | Freescale Semiconductor |
| NavitasChip Part Number | NAVI-11519778 |
| Description | IC MPU M680X0 16MHZ 68PLCC |
| Spec | 68-LCC (J-Lead) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Freescale Semiconductor |
| Package | Tube |
| Product Status | Obsolete |
| Core Processor | EC000 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 16MHz |
| Graphics Acceleration | No |
| Voltage - I/O | 5.0V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 68-PLCC (24.21x24.21) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Freescale Semiconductor MC68HC001EI16 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC68HC001EI16 is an Embedded Processor manufactured by Freescale Semiconductor (Freescale). Integrated Circuit Microprocessor M680x0 operating at 16MHz 68plcc, housed in a compact 68-PLCC (24.21x24.21) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 68-LCC (J-Lead)
- Device Package: 68-PLCC (24.21x24.21)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
