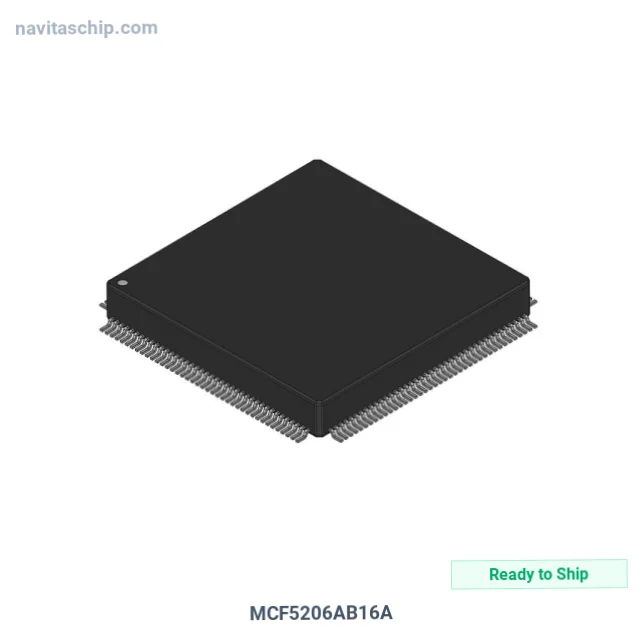

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCF5206AB16A |
| Manufacturer | Freescale Semiconductor |
| NavitasChip Part Number | NAVI-11548930 |
| Description | IC MPU MCF520X 16MHZ 160QFP |
| Spec | 160-BQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Freescale Semiconductor |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | Coldfire V2 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 16MHz |
| RAM Controllers | DRAM |
| Voltage - I/O | 5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 160-QFP (28x28) |
| Additional Interfaces | EBI/EMI, I2C, UART/USART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Freescale Semiconductor MCF5206AB16A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCF5206AB16A is an Embedded Processor manufactured by Freescale Semiconductor (Freescale). Integrated Circuit Microprocessor Mcf520x operating at 16MHz in 160-Pin QFP Package, housed in a compact 160-QFP (28x28) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 160-BQFP
- Device Package: 160-QFP (28x28)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
