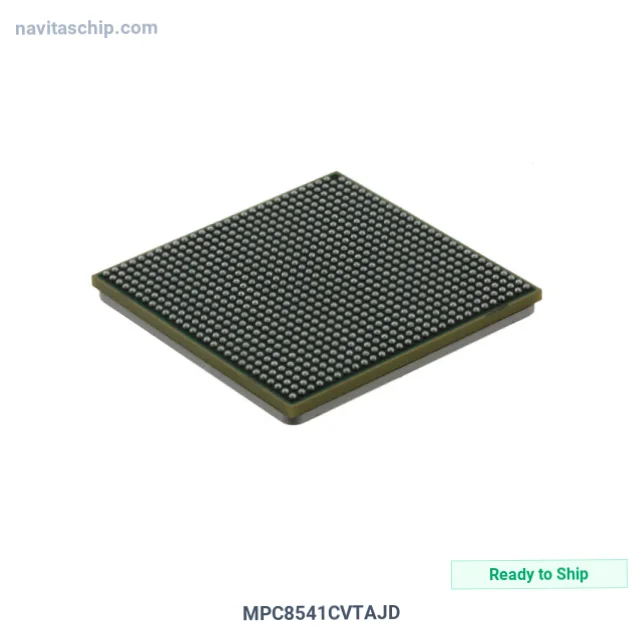

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MPC8541CVTAJD |
| Manufacturer | Freescale Semiconductor |
| NavitasChip Part Number | NAVI-11559550 |
| Description | IC MPU MPC85XX 533MHZ 1023FCBGA |
| Spec | 1023-BFBGA, FCBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Freescale Semiconductor |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | PowerPC e500 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 533MHz |
| RAM Controllers | DDR, SDRAM |
| Graphics Acceleration | No |
| Ethernet | 10/100/1000Mbps (2) |
| Voltage - I/O | 2.5V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1023-FCBGA (33x33) |
| Additional Interfaces | DUART, I2C, PCI |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Freescale Semiconductor MPC8541CVTAJD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MPC8541CVTAJD is an Embedded Processor manufactured by Freescale Semiconductor (Freescale). Integrated Circuit Microprocessor Mpc85xx operating at 533MHz in 1023-Pin BGA Package, housed in a compact 1023-FCBGA (33x33) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 1023-BFBGA, FCBGA
- Device Package: 1023-FCBGA (33x33)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
