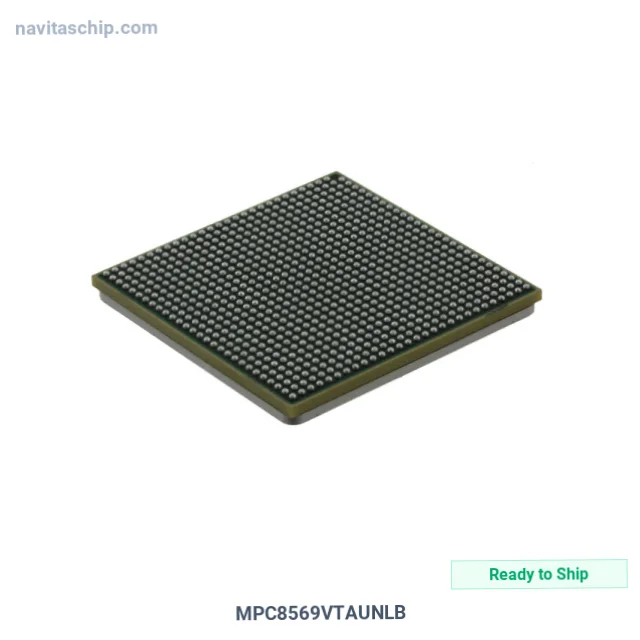

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MPC8569VTAUNLB |
| Manufacturer | Freescale Semiconductor |
| NavitasChip Part Number | NAVI-11514529 |
| Description | IC MPU MPC85XX 1.333GHZ 783BGA |
| Spec | 783-BBGA, FCBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Freescale Semiconductor |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | PowerPC e500v2 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 1.333GHz |
| Co-Processors/DSP | Communications; QUICC Engine |
| RAM Controllers | DDR2, DDR3, SDRAM |
| Graphics Acceleration | No |
| Ethernet | 10/100Mbps (8), 1Gbps (4) |
| USB | USB 2.0 (1) |
| Voltage - I/O | 1.0V, 1.5V, 1.8V, 2.5V, 3.3V |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 783-FCPBGA (29x29) |
| Additional Interfaces | DUART, HSSI, I2C, MMC/SD, PCI, RapidIO, SPI, TDM, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Freescale Semiconductor MPC8569VTAUNLB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MPC8569VTAUNLB is an Embedded Processor manufactured by Freescale Semiconductor (Freescale). Integrated Circuit Microprocessor Mpc85xx operating at 1.333GHz in 783-Pin BGA Package, housed in a compact 783-FCPBGA (29x29) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 783-BBGA, FCBGA
- Device Package: 783-FCPBGA (29x29)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
