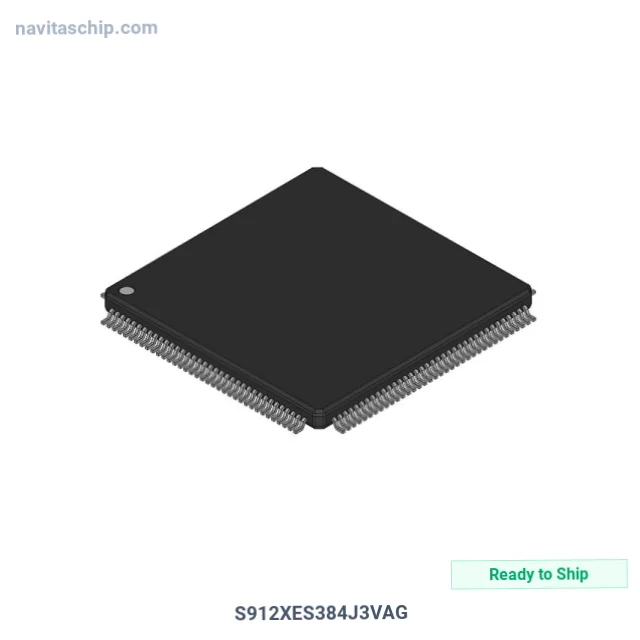

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S912XES384J3VAG |
| Manufacturer | Freescale Semiconductor |
| NavitasChip Part Number | NAVI-12601828 |
| Description | IC MCU 16BIT 384KB FLASH 144LQFP |
| Spec | 144-LQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Freescale Semiconductor |
| Package | Bulk |
| Product Status | Active |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | 50MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 119 |
| Program Memory Size | 384KB (384K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 1.98V |
| Data Converters | A/D 24x12b SAR |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Freescale Semiconductor S912XES384J3VAG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The S912XES384J3VAG is a Microcontroller (MCU) manufactured by Freescale Semiconductor (Freescale). Integrated Circuit Microcontroller 16bit 384kb Flash Memory in 144-Pin LQFP Package, housed in a compact 144-LQFP (20x20) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 144-LQFP
- Device Package: 144-LQFP (20x20)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
