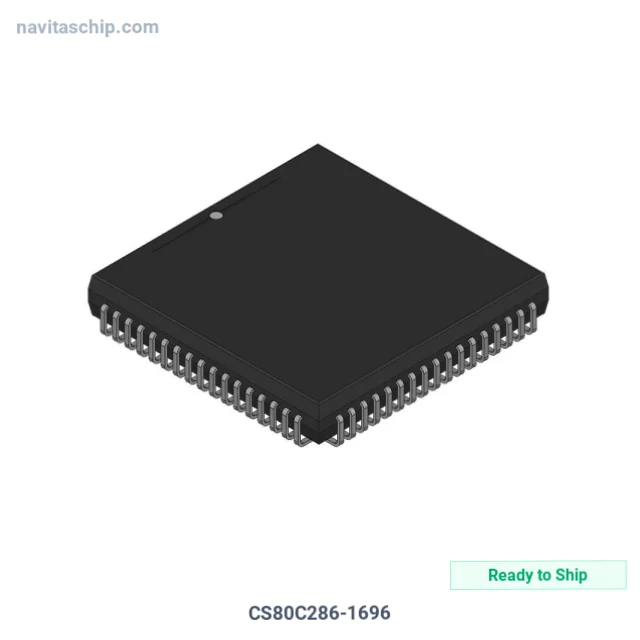

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CS80C286-1696 |
| Manufacturer | Harris Corporation |
| NavitasChip Part Number | NAVI-12593411 |
| Description | IC MPU 16MHZ 68PLCC |
| Spec | 68-LCC (J-Lead) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Harris Corporation |
| Package | Bulk |
| Product Status | Active |
| Core Processor | 80C286 |
| Number of Cores/Bus Width | 1 Core, 16-Bit |
| Speed | 16MHz |
| Co-Processors/DSP | Math Engine; 80C287 |
| Graphics Acceleration | No |
| Voltage - I/O | 5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 68-PLCC (24.21x24.21) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Harris Corporation CS80C286-1696 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CS80C286-1696 is an Embedded Processor manufactured by Harris Corporation. Integrated Circuit Microprocessor operating at 16MHz 68plcc, housed in a compact 68-PLCC (24.21x24.21) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 68-LCC (J-Lead)
- Device Package: 68-PLCC (24.21x24.21)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
