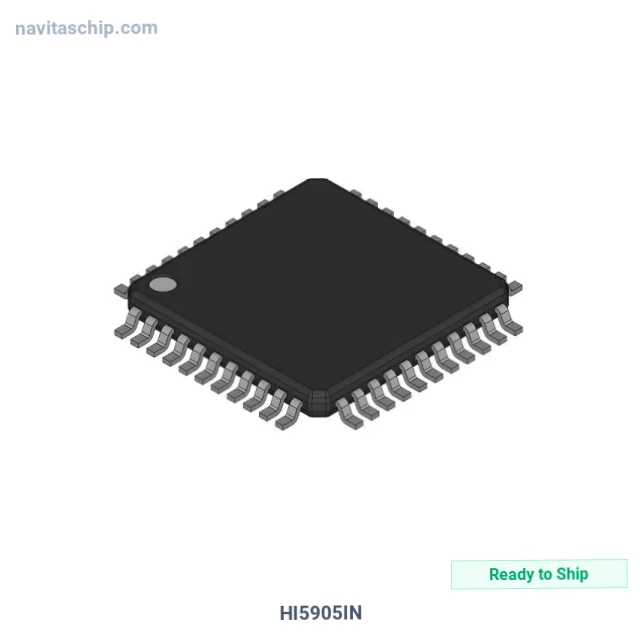

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HI5905IN |
| Manufacturer | Harris Corporation |
| NavitasChip Part Number | NAVI-12123066 |
| Description | 14-BIT, 5 MSPS A/D CONVERTER |
| Spec | 44-QFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Harris Corporation |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 44-MQFP (10x10) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Harris Corporation HI5905IN Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HI5905IN is an Analog-to-Digital Converter (ADC) manufactured by Harris Corporation. 14-Bit, housed in a compact 44-MQFP (10x10) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 44-QFP
- Device Package: 44-MQFP (10x10)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
