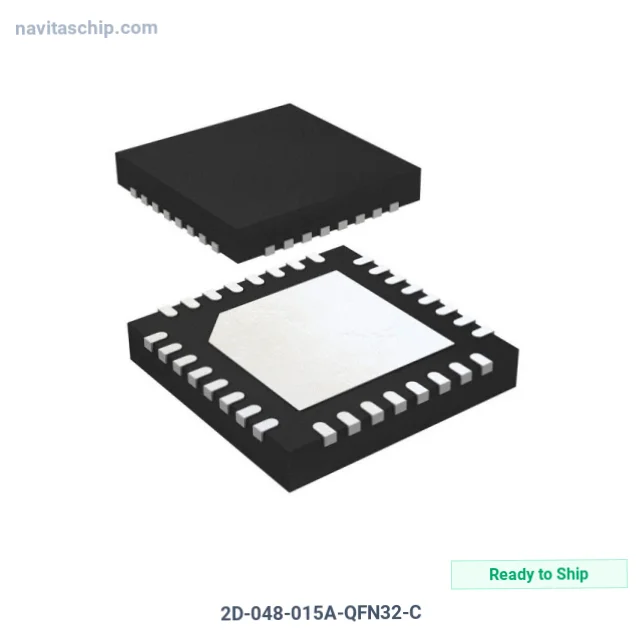

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 2D-048-015A-QFN32-C |
| Manufacturer | Helix Semiconductors |
| NavitasChip Part Number | NAVI-9998811 |
| Description | IC REG BUCK 24V/12V TRPL 32QFN |
| Spec | 32-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Helix Semiconductors |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 57V |
| Voltage - Output (Min/Fixed) | 24V, 12V, 12V |
| Current - Output | 650mA, 1A, 1A |
| Frequency - Switching | 95kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Helix Semiconductors 2D-048-015A-QFN32-C Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 2D-048-015A-QFN32-C is a DC-DC Switching Voltage Regulator manufactured by Helix Semiconductors. Integrated Circuit Regulator Buck 24V Supply/12V Supply Trpl in 32-Pin QFN Package, housed in a compact 32-QFN (5x5) package.
Key Technical Specifications
- Output Type: Fixed
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 32-VFQFN Exposed Pad
- Device Package: 32-QFN (5x5)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
