Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Himax |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARC EM9D |
| Speed | 400MHz |
| Connectivity | I2C, PDM, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, Sensor I/F, WDT |
| Number of I/O | 15 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 2M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V |
| Data Converters | A/D 4x12b |
| Oscillator Type | Internal |
| Mounting Type | Surface Mount |
| Supplier Device Package | 128-LQFP (14x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Himax HX6539-A04TLDG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

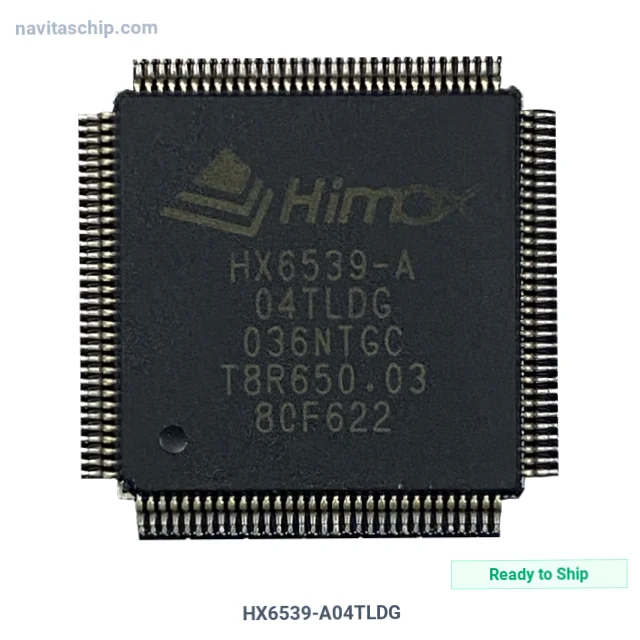

The HX6539-A04TLDG is a Microcontroller (MCU) manufactured by Himax. Integrated Circuit Microcontroller 2mb Flash Memory in 128-Pin LQFP Package, housed in a compact 128-LQFP (14x14) package.
Key Technical Specifications
- Mounting: Surface Mount
- Package: 128-LQFP
- Device Package: 128-LQFP (14x14)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
