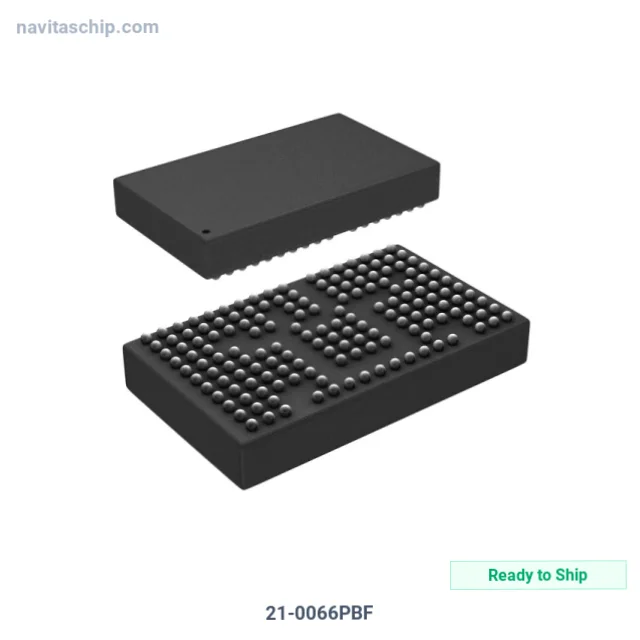

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 21-0066PBF |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-1828096 |
| Description | IC REG BUCK ADJ SGL/DL 159BGA |
| Spec | 159-BBGA Power Module |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Infineon Technologies |
| Package | Tube |
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 or 2 |
| Voltage - Input (Min) | 3.14V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 3.3V |
| Current - Output | 30A, 15A |
| Frequency - Switching | 170kHz ~ 460kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 159-BGA Power Block (15.5x9.25) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies 21-0066PBF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 21-0066PBF is a DC-DC Switching Voltage Regulator manufactured by Infineon Technologies (Infineon). Integrated Circuit Regulator Buck Adjustable Single/dual in 159-Pin BGA Package, housed in a compact 159-BGA Power Block (15.5x9.25) package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 159-BBGA Power Module
- Device Package: 159-BGA Power Block (15.5x9.25)
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
