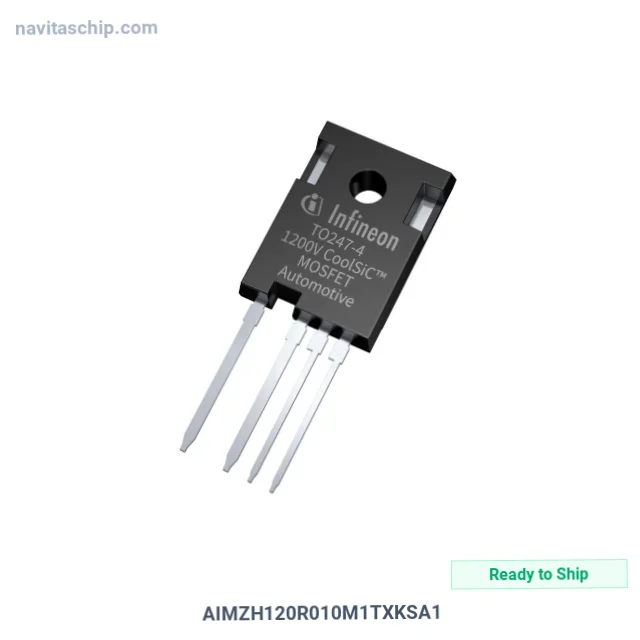

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AIMZH120R010M1TXKSA1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-21675757 |
| Description | SIC_DISCRETE |
| Spec | TO-247-4 |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Package | Tube |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 202A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 18V, 20V |
| Rds On (Max) @ Id, Vgs | 11.3mOhm @ 93A, 20V |
| Vgs(th) (Max) @ Id | 5.1V @ 30mA |
| Gate Charge (Qg) (Max) @ Vgs | 178 nC @ 20 V |
| Vgs (Max) | +23V, -5V |
| Input Capacitance (Ciss) (Max) @ Vds | 5703 pF @ 800 V |
| Power Dissipation (Max) | 750W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO247-4-11 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies AIMZH120R010M1TXKSA1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AIMZH120R010M1TXKSA1 is a Transistor manufactured by Infineon Technologies (Infineon). Sic_dithyristorete, housed in a compact PG-TO247-4-11 package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Through Hole
- Package: TO-247-4
- Device Package: PG-TO247-4-11
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
