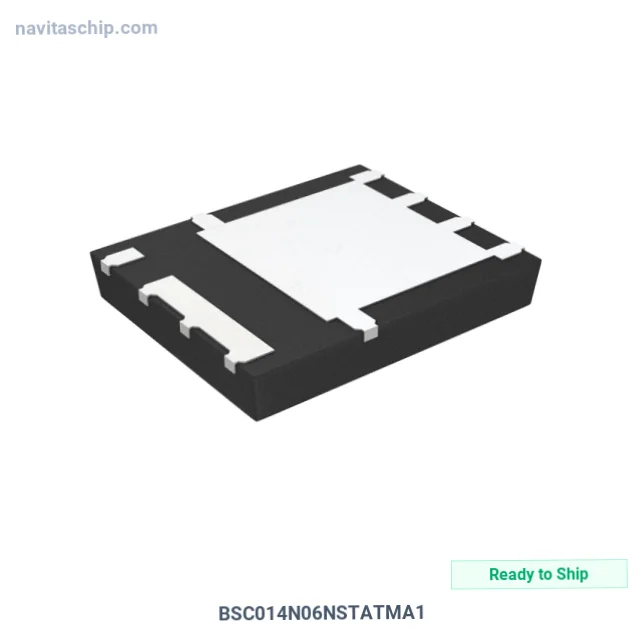

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | BSC014N06NSTATMA1 |
| Manufacturer | Infineon Technologies |
| NavitasChip Part Number | NAVI-8130821 |
| Description | MOSFET N-CH 60V 100A TDSON-8 FL |
| Spec | 8-PowerTDFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | Infineon Technologies |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.45mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.3V @ 120µA |
| Gate Charge (Qg) (Max) @ Vgs | 104 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 8125 pF @ 30 V |
| Power Dissipation (Max) | 3W (Ta), 188W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TDSON-8 FL |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Infineon Technologies BSC014N06NSTATMA1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The BSC014N06NSTATMA1 is a Transistor manufactured by Infineon Technologies (Infineon). MOSFET N-Channel 60V breakdown 100A current TDSON-8 Fl, housed in a compact PG-TDSON-8 FL package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting: Surface Mount
- Package: 8-PowerTDFN
- Device Package: PG-TDSON-8 FL
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
